They are supplied ready for connection with four matching banana plugs.
The LR-Cal LRT F (Pt 100) probe is connected to the second measurement input of the temperature calibrator - labeled “REF” - in the -2I version or the version with the LTC-MP-3I option. Its measured values are displayed on the temperature calibrator’s screen after the -2I version or the version with the LTC-MP-3I option has been configured accordingly.
The LR-Cal LRT F (Pt 100) precision RTD temperature probes are pre-aged to ensure particularly high long-term stability and optimum behavior even at high temperatures. They consist of particularly high-quality platinum elements, which ensure the highest possible accuracy and, more importantly, particularly high long-term stability and reproducibility.
Specification
LR-Cal LRT F (Pt 100) specification
Measuring range
°C
-40...+650
Dimension
mm
Code LRT-F-9040-0650-45: 480 x 4.5 diameter Code LRT-F-9040-0650-60: 480 x 6.0 diameter
LR-Cal LRT F (Pt 100) optional calibration certificates
Code: WKZ-T-KAL-RT-6T Factory calibration certificate, 6 test points, sensor only (without display)
Code: WKZ-T-KAL-DT-3T Factory calibration certificate, 3 test points, for measuring chain (Sensor and display of the LR-Cal LTC temperature calibrator with the LTC-MP-3I option or the -2I version)
Code: WKZ-T-KAL-MP-3ZPP Surcharge for 3 additional calibration points on the factory calibration certificate
Code: DKD-T-KAL-RT-6T DAkkS calibration certificate, 6 test points, sensor only (without display)
Code: DKD-T-KAL-DT-3T DAkkS calibration certificate, 3 test points, for measuring chain (Sensor and display of the LR-Cal LTC temperature calibrator with the LTC-MP-3I option or the -2I version)
Code: DKD-T-KAL-MP-3ZPP Surcharge for 3 additional calibration points for DAkkS calibration certificate
What is temperature calibration with a temperature calibration bath?
What is temperature calibration with a temperature calibration bath?
The test item (temperature measuring instruments of all types, e.g. dial thermometers, glass thermometers, resistance thermometers, temperature switches, thermostats, etc.) and the reference temperature measuring instrument (installed in the calibrator or external reference) are both subjected to test temperatures. The measured values of the reference are compared with the values of the test item. In this way, a statement can be made not only about the function of the test item, but also about the measurement accuracy or the measured value deviation of the test item.
Please note that the specifications regarding radial and axial temperature uniformity given in the respective technical data refer to specific immersion depths and do not necessarily apply to all immersion depths in every case. The temperature range specifications apply at an ambient temperature of +20°C.
The LR-Cal temperature calibration baths have an internal (built-in) reference. If its accuracy is not sufficient, an external reference (without or with its own display) can be used.
The LTC-MP-3I option is available for the portable LR-Cal LTC temperature calibration baths (with the exception of the LR-Cal LTC 150/250-F(-PLUS) devices), with three measuring inputs (2 x for RTD/TC and 1 x for analog signal 4...20 mA/0...10 V).
The stationary LR-Cal temperature calibration baths are available in two versions: standard version and “-2I” version with 2 measuring inputs (for RTD/TC).
Furthermore, the LR-Cal Aq2Sp2 PC software is available as an option for the LR-Cal temperature calibration baths. With this, the calibrator can be completely controlled from the PC via its serial interface, manual or automatic calibration of one or more DUTs, load and lifetime tests, thermostat tests, as well as the creation of calibration certificates.
Synonyms
Temperature calibration baths are also referred to as
What is temperature calibration with a metal dry block temperature calibrator?
What is temperature calibration with a metal block temperature calibrator?
The test item (temperature measuring instruments of all types, e.g. dial thermometers, glass thermometers, resistance thermometers, temperature switches, thermostats, etc.) and the reference temperature measuring instrument (installed in the calibrator or external reference) are both subjected to test temperatures. The measured values of the reference are compared with the values of the test item. In this way, a statement can be made not only about the function of the test item, but also about the measurement accuracy or the measured value deviation of the test item.
Please note that the specifications regarding radial and axial temperature uniformity given in the respective technical data refer to specific immersion depths and do not necessarily apply to all immersion depths in every case. The temperature range specifications apply at an ambient temperature of +20°C.
The LR-Cal metal block temperature calibrators have an internal (built-in) reference. If its accuracy is not sufficient, an external reference (without or with its own display) can be used.
The LTC-MP-3I option is available for LR-Cal LTC metal block temperature calibrators (except for versions LTC-DB-0550-60 and LR-Cal LTC-DB-1200-35), with three measurement inputs (2 x for RTD/TC and 1 x for analog signal 4... 20 mA/0...10 V).
The LR-Cal LTC-DB-0550-60 metal block temperature calibrator is available in two versions: standard version and “-2I” version with 2 measuring inputs (for RTD/TC).
This option is not available for the LR-Cal metal block temperature calibrators of the compact PYROS series.
Furthermore, the LR-Cal Aq2Sp2 PC software is available as an option for the LR-Cal metal block temperature calibrators. This allows the calibrator to be completely controlled from the PC via its serial interface, manual or automatic calibration of one or more DUTs, load and life tests, thermostat tests, as well as the generation of calibration certificates.
Synonyms
Metal block temperature calibrators are also referred to as
Portable and compact dry block temperature calibrator
Temperature range -26...+140°C
Accuracy ±0,25°C, stability ±0,1°C
Block: 2 x 13 mm diameter Insertion depth: 104 mm

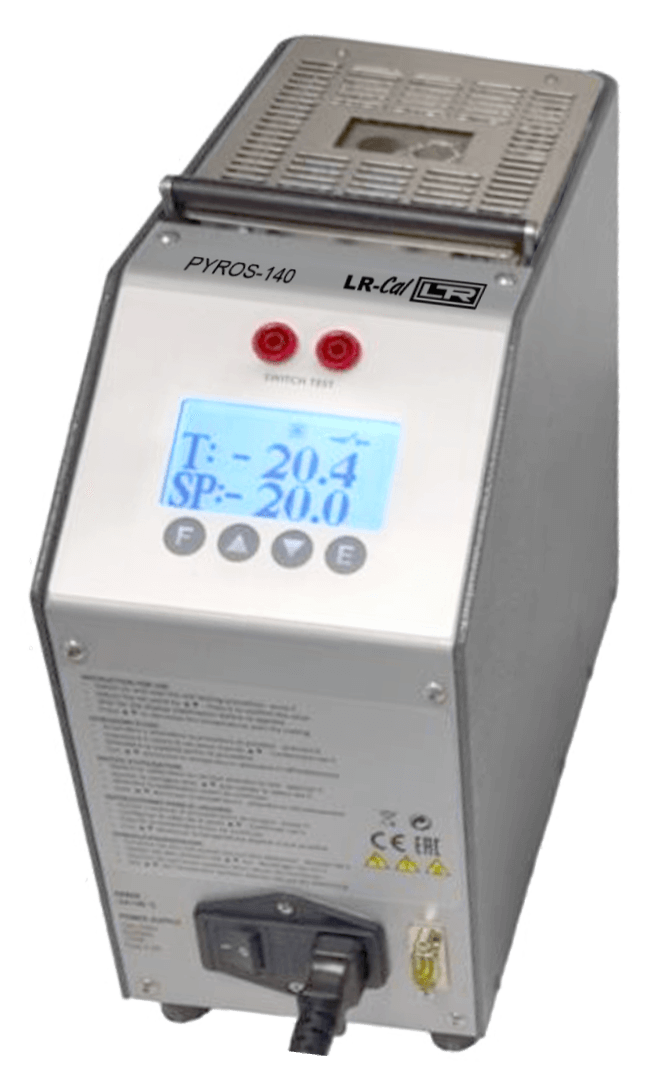

Lightweight and compact LR-Cal PYROS 140-2L
Lightweight + compact: LR-Cal PYROS 140-2L
Schaltertest mit dem LR-Cal PYROS 140-2L
Switch/thermostat test with LR-Cal PYROS 140-2L
Einfache Bedienung LR-Cal PYROS 140-2L
Easy operation of the calibrator LR-Cal PYROS 140-2L
Description
LR-Cal PYROS 140-2L description
The compact metal block temperature calibrator LR-Cal PYROS 140-2L serves as temperature source and reference instrument in one, for testing and calibration of temperature measuring instruments of all kinds.
Temperature range -26...+140°C
2 metal blocks made from copper, each 13 mm diameter
Compact and lightweight
Power supply 115...240 VAC 50/60 Hz
Ramp function
Thermostat test
Various block inserts with different drillings for test items available
Particularly proven also on board ships (marine industry)
Computer interface (RS232, interface converter RS232-USB available as accessory)
Specification
LR-Cal PYROS 140-2L specification
Description:
Data:
Tmperature range (at 20°C ambient temp.)
-26°C...+140°C / -14.8°F...+284°F
Temperature display
Accuracy ±0.25°C ±1 Digit Resolution 0.1° (°C oder °F)
Stability of regulated temperature
±0.1°C (max. deviation between display and reference)
Mean heating time (incl. stabilization)
from ambient temperature to +120°C approx. 20 minutes
Mean cooling time (incl. stabilization)
from +120°C to ambient temperature approx. 17 minutes
Axial temperature uniformity (measured at 40 mm from the bottom)
at -20°C ±0.12°C at 0°C ±0.04°C at 100°C ±0.12°C
Radial temperature uniformity (measured at 40 mm from the bottom)
at 100°C ±0.05°C
Metal block depth
104 mm
Metal block diameter
2 x 13 mm (distance 20 mm)
Block insert material
Anticorodal (aluminum alloy)
Switch test, voltage
On/Off, 12 VDC
Programmable ramp function
0.1...10°C/min
Automatic calibration possible
on 5 points (via keypad)
Power supply
115...240 VAC ±10%, 50/60 Hz
Power consumption
80 W
Interface
RS 232 (optional with USB converter)
Housing material
Metal
Weight
approx. 5.5 kg
Dimension
130 x 260 x 280 mm
Order-Code
PYROS-140-2L
All above stated values are valid at +20°C ambient temperature. Diameter of the sensors, used to evaluate above stated data: 3 mm.
Scope of standard supply
LR-Cal PYROS 140-2L scope of standard supply
Portable compact dry block temperature calibrator LR-Cal PYROS 140-2L
Spare fuses
Cable for power supply
Connection cables for thermostat tests
1 insert 1 hole 4.8 mm diameter
1 insert 1 hole 6.4 mm diameters
Removal tool for changing insert sleeves
Factory calibration certificate (performance and accuracy)
Operating manual DE+EN
Available dry block inserts
LR-Cal PYROS 140-2L available dry block inserts
Code
Description
PYROS-140-2L-INS-0
Insert sleeve without hole(s), for self-drilling
PYROS-140-2L-INS-032
Insert with 1 hole 3.2 mm (1/8")
PYROS-140-2L-INS-040
Insert with 1 hole 4.0 mm (5/32")
PYROS-140-2L-INS-048
Insert with 1 hole 4.8 mm (3/16") 1 piece already included in the device scope of delivery
PYROS-140-2L-INS-064
Insert with 1 hole 6.4 mm (1/4") 1 piece already included in the device scope of delivery
PYROS-140-2L-INS-079
Insert with 1 hole 7.9 mm (5/16")
PYROS-140-2L-INS-095
Insert with 1 hole 9.5 mm (3/8")
PYROS-140-2L-INS-111
Insert with 1 hole 11.1 mm (7/16")
PYROS-140-2L-INS-KW
Insert with 1 hole according to customer requirements (specify desired diameter when ordering)
Other accessories
LR-Cal PYROS 140-2L other accessories
Shoulder bag
Code: PYROS-TASCHE
Accessory: Padded shoulder bag for PYROS devices
Waterproof case
Code: PYROS-KOFFER
Accessory: Splashproof case Protection class IP 65 e.g. for marine applications
Aq2Sp2 Software
Code: LTC-AQ2SP2
Accessory: Windows®-PC software Control of the calibrator from the PC, manual or automatic calibration of one or more test items, load and endurance tests, thermostat tests (incl. hystersis), generation of calibration certificates
Special RS232 cable
Code: RS232-LTC-KABEL
Accessory: Special RS232 connection cable
RS232/USB converter
Code: RS232-USB-KONV
Accessory: Interface converter RS232 to USB
What is temperature calibration with a metal dry block temperature calibrator?
What is temperature calibration with a metal block temperature calibrator?
The test item (temperature measuring instruments of all types, e.g. dial thermometers, glass thermometers, resistance thermometers, temperature switches, thermostats, etc.) and the reference temperature measuring instrument (installed in the calibrator or external reference) are both subjected to test temperatures. The measured values of the reference are compared with the values of the test item. In this way, a statement can be made not only about the function of the test item, but also about the measurement accuracy or the measured value deviation of the test item.
Please note that the specifications regarding radial and axial temperature uniformity given in the respective technical data refer to specific immersion depths and do not necessarily apply to all immersion depths in every case. The temperature range specifications apply at an ambient temperature of +20°C.
The LR-Cal metal block temperature calibrators have an internal (built-in) reference. If its accuracy is not sufficient, an external reference (without or with its own display) can be used.
The LTC-MP-3I option is available for LR-Cal LTC metal block temperature calibrators (except for versions LTC-DB-0550-60 and LR-Cal LTC-DB-1200-35), with three measurement inputs (2 x for RTD/TC and 1 x for analog signal 4... 20 mA/0...10 V).
The LR-Cal LTC-DB-0550-60 metal block temperature calibrator is available in two versions: standard version and “-2I” version with 2 measuring inputs (for RTD/TC).
This option is not available for the LR-Cal metal block temperature calibrators of the compact PYROS series.
Furthermore, the LR-Cal Aq2Sp2 PC software is available as an option for the LR-Cal metal block temperature calibrators. This allows the calibrator to be completely controlled from the PC via its serial interface, manual or automatic calibration of one or more DUTs, load and life tests, thermostat tests, as well as the generation of calibration certificates.
Synonyms
Metal block temperature calibrators are also referred to as
Portable and compact dry block temperature calibrator
Temperature range -26...+140°C
Accuracy ±0.25°C, stability ±0.1°C
Block: 19 mm diameter Insertion depth: 104 mm
Leichter und kompakter LR-Cal PYROS 140-1L
Lightweight and compact LR-Cal PYROS 140-1L
Schaltertest mit dem LR-Cal PYROS 140-1L
Switch / thermostat test with LR-Cal PYROS 140-1L
Einfache Bedienung LR-Cal PYROS 140-1L
Easy operation of the LR-Cal PYROS 140-1L
Description
LR-Cal PYROS 140-1L description
The compact metal block temperature calibrator LR-Cal PYROS 140 1L serves as temperature source and reference instrument in one, for testing and calibration of temperature measuring instruments of all kinds.
Temperature range -26...+140°C
1 dry metal black made from aluminum, 19 mm diameter
Compact and lightweight
Power supply 115/240 VAC, 50/60 Hz
Ramp function
Thermostat tests
Various block inserts with different holes for test specimens available
Particularly proven also on board ships (marine industry)
Computer interface (RS232, optional with USB converter (accessory)
Specification
LR-Cal PYROS 140-1L specification
Description:
Data:
Tmperature range (at 20°C ambient temp.)
-26°C...+140°C / -14.8°C...+284°F
Temperature display
Accuracy ±0.25°C ±1 Digit Resolution 0.1° (°C oder °F)
Stability of regulated temperature
±0.1°C
Mean heating time (incl. stabilization)
from ambient temperature to +120°C approx. 17 min.
Mean cooling time (incl. stabilization)
from +120°C to ambient temperature approx. 15 min.
Axial temperature uniformity (measured at 40 mm from the bottom)
at -20°C ±0.1°C at 0°C ±0.05° at 100°C ±0.1°C
Radial temperature uniformity (measured at 40 mm from the bottom)
at 100°C ±0.05°C
Metal block depth
104 mm
Metal block diameter
19 mm
Metal block insert material
Anticorodal (aluminum-alloy)
Switch test, voltage
On/Off, 12 VDC
Programmable ramp function
0.1...10°C/min
Automatic calibration possible
on 5 points (via keypad)
Power supply
115...240 VAC ±10% 50/60 Hz
Power consumption
80 W
Interface
RS232 (optional with USB converter)
Housing material
Metal
Weight
approx. 5.5 kg
Dimension
130 x 260 x 280 mm
Order-Code
PYROS-140-1L
All stated values valid at ambient temperature +20°C. Diameter of sensors, used for evaluating above data: 3 mm.
Scope of standard supply
LR-Cal PYROS 140-1L scope of standard supply
Portable compact dry block temperature calibrator LR-Cal PYROS 140-1L
Spare fuses
Cable for power supply
Connection cables for thermostat tests
1 insert mit 4 holes: 3.3 + 4.8 + 6.4 + 6.4 mm diameter
Insert removal tool
Factory calibration certificate (performance and accuracy)
Operating manual DE+EN
Available dry block inserts
LR-Cal PYROS 140-1L available dry block inserts
Order-Code
Description
PYROS-140-1L-INS-0
Insert sleeve without hole(s), for self-drilling 1 piece already included in the device scope of delivery
PYROS-140-1L-INS-4
Insert with 4 holes: 3.3 + 4.8 + 6.4 + 6.4 mm 1 piece already included in the device scope of delivery
Other accessories
LR-Cal PYROS 140-1L other accessories
Shoulder bag
Code: PYROS-TASCHE
Accessory: Padded shoulder bag for PYROS devices
Waterproof case
Code: PYROS-KOFFER
Accessory: Splashproof case Protection class IP 65 e.g. for marine applications
Aq2Sp2 software
Code: LTC-AQ2SP2
Accessory: Windows®-PC software Control of the calibrator from the PC, manual or automatic calibration of one or more test items, load and endurance tests, thermostat tests (incl. hystersis), generation of calibration certificates
Special RS232 cable
Code: RS232-LTC-KABEL
Accessory: Special RS232 connection cable
RS232/USB converter
Code: RS232-USB-KONV
Accessory: Interface converter RS232 to USB
