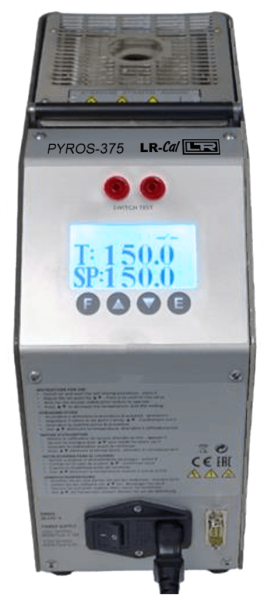

LR-Cal PYROS 375-DNV
Compact dry block (well) temperature calibrator
+30...+375°C
- Portable and compact
dry block temperature calibrator - Temperature range +30...+375°C
- Accuracy ±0.35°C, stability ±0.1°C
- Block: 26 mm diameter
Insertion depth: 150 mm
Description
LR-Cal PYROS 375-DNV description
The compact metal block temperature calibrator LR-Cal PYROS 375-DNV serves as temperature source and reference instrument in one, for testing and calibrating temperature measuring instruments of all kinds.
- Temperature range +30...+375°C
- Type approval by DNV-GL (No. TAA00002CX)
- 1 dry metal block, 26 mm diameter
- Compact and lightweight
- Power supply 115/240 VAC, 50/60 Hz
- Ramp function
- Thermostat tests
- Various block inserts with different holes for test specimens available
- Particularly proven also on board ships (marine industry)
- Computer interface (RS232, interface converter RS232-USB available as accessory)
The portable metal block temperature calibrator LR-Cal PYROS 375-DNV has been specially developed for simple and portable use on site. Special emphasis was placed on a low overall weight and easy handling. The housing is made of robust aluminum and many internal parts are made of stainless steel. Each LR-Cal PYROS 375-DNV temperature calibrator is calibrated in the laboratory at the factory.
The thermal parts of the calibrators, i.e. the calibration temperature source, consist of a solid metal block that is heated or cooled with Peltier elements. There are one or more holes in the metal block for inserting the test specimens. Special insert sleeves offer further options for processing test specimens with different diameters. Shorter reaction times during the heating and cooling phases and rapid stabilization save time during multi-point calibration processes.
An innovative ventilation system on the device makes it possible to keep the temperature on the top of the calibrator lower than on devices from other manufacturers. This system does not direct the hot exhaust air upwards towards the test specimens, but out of the housing to the rear.
Thermographic images taken at 650°C:
Third-party products: at +650°C the test specimen heats up to approx. 69.6°C
LR-Cal PYROS devices: at +650°C the test specimen heats up to approx. 27.5°C
As a result, the measuring head of the test specimen and the electrical connections are exposed to a significantly reduced temperature and possible temperature compensation errors are significantly reduced.
Specification
LR-Cal PYROS 375-DNV specification
Temperature range (at 20°C ambient temperature) |
+30°C...+375°C / +86°F...+707°F | |
Temperature display | Accuracy ±0.35°C at +375°C Resolution 0.1° (°C or °F) |
|
Stabilty of regulated temperature | ±0.1°C (max. difference between display and reference) | |
Mean heating time (incl. stabilization) | from ambient temperature to +375°C approx. 15 minutes | |
Mean cooling time (incl. stabilization) | from +375°C to 50°C approx. 60 minutes | |
Axial temperature uniformity (measured at 40 mm from the bottom) |
at 50°C ±0.02°C at 200°C ±0.2°C at 375°C ±0.4°C |
|
Radial temperature uniformity (measured at 40 mm from the bottom) |
at 200°C ±0.1°C at 375°C ±0.2°C |
|
Dry block depth | 150 mm | |
Dry block diameter | 26 mm | |
Block insert material | Anticorodal (aluminum-alloy) | |
Switch/thermostat test, voltage | On/Off 5 VD | |
Programmable ramp function | 0.1...10°C/min | |
Automatic calibration | on 5 points (via keypad) | |
Power supply | 115/240 VAC ±10%, 50/60 Hz | |
Power consumption | 600 W | |
Interface | RS 232 | |
Case material | Metal (steel) | |
Weight | approx. 5.32 kg | |
Dimension | 130 x 260 x 280 mm | |
Order-Code | PYROS-DNV-375 |
Above stated values are valid at +20°C ambient temperature.
Diameter of the sensors, used for evaluation of above mentioned data: 3 mm.
Scope of standard supply
LR-Cal PYROS 375-DNV scope of standard supply
- Portable compact dry block temperature calibrator LR-Cal PYROS 375-DNV
- Spare fuses
- Cable for power supply
- Connection cables for thermostat tests
- 1 insert with 4 holes (3.2 + 4.8 + 6.4 + 11.1 mm)
- Removal tool for changing insert sleeves
- Factory calibration certificate (performance and accuracy)
- Operating manual DE+EN
Available dry block inserts
LR-Cal PYROS 375-DNV available dry block inserts
Order-Code | Description |
PYROS-375-INS-0 | Insert sleeve without hole(s), for self-drilling |
PYROS-375-INS-4 | Insert with 4 holes: 3.2 + 4.8 + 6.4 + 11.1 mm diameter 1 piece already included in the device scope of delivery |
PYROS-375-INS-2 | Insert with 2 holes: 6.4 + 12.7 mm diameter |
PYROS-375-INSKW-2 | Insert with 2 holes according to customer's request, from 3 to 11 mm diameter (please specify required diameter in order, design as far as technically feasible) |
PYROS-375-INS-3 | Insert with 3 holes according to customer's request, from 3 to 11 mm diameter (please specify required diameter in order, design as far as technically feasible) |
PYROS-375-INS-5 | Insert with 5 holes according to customer's request, from 3 to 11 mm diameter (please specify required diameter in order, design as far as technically feasible) |
LR-Cal PYROS 375-DNV other accessories
Shoulder bag
Accessory:
Padded shoulder bag
for PYROS devices
Waterproof case
Accessory:
Splashproof case
Protection class IP 65
e.g. for marine applications
RS232/USB converter
Accessory:
Interface converter
RS232 to USB
