LR-Cal LTC 150-F-PLUS
Portable temperature micro bath
-40...+160°C

LR-Cal LTC 150-F-PLUS temperature micro bath

Portable, operation via touch screen
Temperature range -40°C...+160°C
Accuracy ±0.1°C, stability ±0.01°C
Calibration bath volume 0.7 liter
(60 mm diameter, 195 mm immersion depth)
Option: exchangeable calibration bath inserts (thus easier change of operating liquid for different temperatures)

Micro bath
LR-Cal LTC 150-F-PLUS

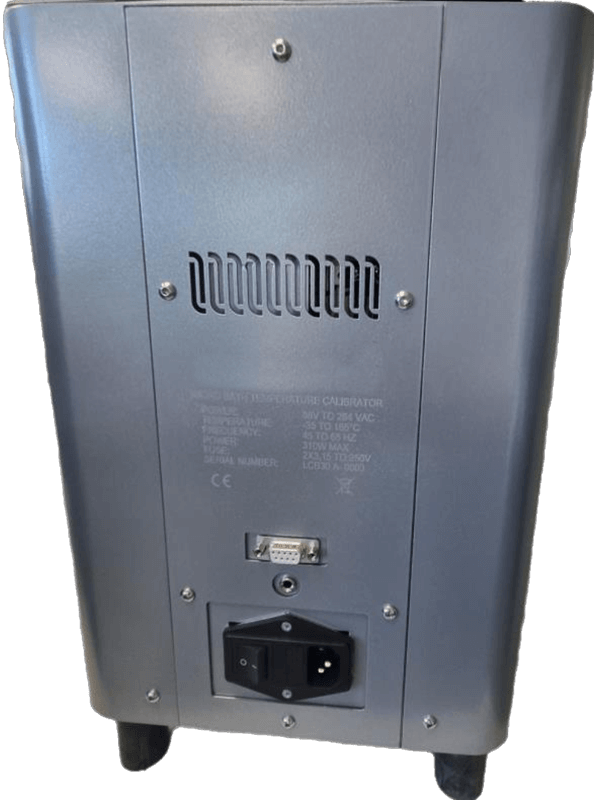

Back side of the housing

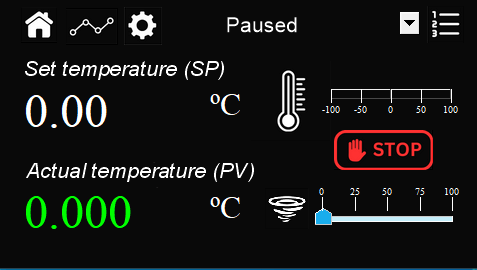

Screenshot
LR-Cal LTC 150-F-PLUS

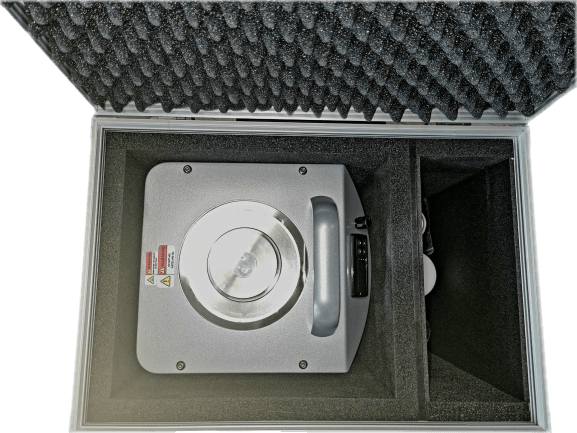

Micro bath
LR-Cal LTC 150-F-PLUS
in optional carrying case

Specification

LR-Cal LTC 150-F-PLUS specification

Description:	Data:
Temperature range (at +20°C ambient temperature)	-40°C...+165°C (-40°F...+329°F) (minimum temperature is 60°C below ambient; absolute minimum is -40°C)
Temperature indication	Accuracy ±0.1°C Resolution 0.001°/0.01°/0.1° (°C or °F)
Stability of the regulated temperature	±0.01°C
Heating	approx. 15 minutes from -5°C to +100°C (23°F to 212°F)
Cooling	approx. 20 minutes from +25°C to -25°C (77°F to -13°F)
Temperature uniformity	±0.03°C
Operation fluid	Silicone oil AC 05 or AC 10 (not included in standard delivery)
Tank diameter / insertion depth	60 mm diameter, 190 mm depth
Power supply	115...230 VAC 50/60 Hz
Power consumption	max. 310 W
Interface	RS485 ModBus RTU
Tank material	Aluminium
Tank volume	approx. 700 cm³
Housing material	Metal
Weight	approx. 12.8 kgs
Dimension	250 x 370 x 440 mm
Selectable operating languages	German, English, French, Spanish, Italian
Display	4.3 inch touch-screen, color

The stated accuracies are valid at ambient temperature +10...+40°C and are guaranteed for one year.
Warranty: 3 years warranty against manufacturing defects.

Options + other accessories

LR-Cal LTC 150-F-PLUS Options + other accessories

DAkkS calibration certificate

Code: DKD-T-KAL-TK-6T

Option:
DAkkS calibration certificate
(instead of factory certificate)

Trolley case

Code: LTC-F-KOFFER

Accessory:
Sturdy trolley case with wheels and extendable handle

Silicone oil AC 05

Code: LTC-F-AC05

Accessory:
1 liter bottle with calibration medium
Silicone oil AC 05
Working range -40...+125°C
Flash point 142°C
Viscosity at 25°C: 5 cSt
Viscosity at 60°C: 6 cSt
Thermal
conductivity: 0.140 W/m K
Heat capacity: 1,5 KJ/kg K
Specific gravity: 0.94

Silicone oil AC 10

Code: LTC-F-AC10

Accessory:
1 liter bottle with calibration medium
Silicone oil AC 10
Working range -30...+160°C
Flash point 170°C
Viscosity at 25°C: 10 cSt
Viscosity at 60°C: 6 cSt
Thermal
conductivity: 0.140 W/m K
Heat capacity: 1,5 KJ/kg K
Specific gravity: 0.94

Silicone oil AC 20

Code: LTC-F-AC20

Accessory:
1 liter bottle with calibration medium
Silicone oil AC 20
Working range -20...+200°C
Flash point 240°C
Viscosity at 25°C: 20 cSt
Viscosity at 60°C: 12 cSt
Thermal
conductivity: 0.140 W/m K
Heat capacity: 1,5 KJ/kg K
Specific gravity: 0.95

Container insulation cover

Code: LTC-F-DECKEL-05

Spare part:
Calibration container lid (for calibration bath insert), for screwing in, made of transparent acrylic, with 5+1 holes.

This accessory allows convenient fixation of the DUTs and ensures less temperature loss through the vessel opening.

Note: 1 pc. is included in scope of delivery of the instrument.

Information about suitable calibration media

Calibration liquids for LR-Cal temperature calibration baths

Basically, temperature calibration baths can be filled with three types of calibration media:

Media that are in a liquid state at ambient temperature, e.g. oils, alcohol and water/alcohol mixtures.
Two-phase media which become liquid at the intended temperature application range of the calibrator. These are usually mixtures of potassium and sodium salts which are powdery at ambient temperature and become liquid at temperatures between 150°C and 500°C. They are used exclusively in calibration baths specially suited for this purpose.
Other solid substances which under certain circumstances or temperatures reach a state similar to a liquid medium, e.g. sand or aluminum powder with extremely fine grain/granularity.

DRUCK & TEMPERATUR Leitenberger GmbH does not use two-phase media for the calibration bath inserts, although their temperature range is very high.
This is because such media can be very dangerous for the user and even cause explosions.

DRUCK & TEMPERATUR Leitenberger GmbH also does not manufacture calibration bath inserts suitable for use with solid substances, e.g. aluminum powder.
This is because it is not possible to prevent 100% that corresponding powder particles get into the environment during operation of the calibrator. These media are not environmentally compatible.

The calibration media sold by DRUCK & TEMPERATUR Leitenberger GmbH for calibration bath inserts are therefore exclusively silicone oils.

Suitable calibration media for the LR-Cal LTC 150-F(-PLUS) + LTC 250-F micro baths:

Type of calibration medium (liquid)	Possible field of application *)	Smoke flash point **)
Silicone oil AC 05	-40...+125°C	+42°C
Silicone oil AC 10	-30...+160°C	+170°C
Silicone oil AC 20	-20...+200°C	+240°C
Silicone oil AC 50	+30...+220°C	+280°C
Silicone oilAC 100	+70...+288°C	+315°C

Note:	Note text:
*)	The "possible range of use" describes the theoretical usability of the medium. However, the viscosity may be unfavorable for practical use as a calibration medium, especially in the lower part of the application range.
**)	Above the specified temperatures, the smoke ignites (CAUTION: open fire!).

The calibration media are subject to wear (degeneration), which is greater the more often and longer they have been exposed to high temperatures. Therefore, avoid unnecessarily high temperatures over an unnecessarily long period of time.
