LR-Cal LTC-DB-0550-60
Metal dry block temperature calibrator
Ambient temperature...+550°C

Brochure

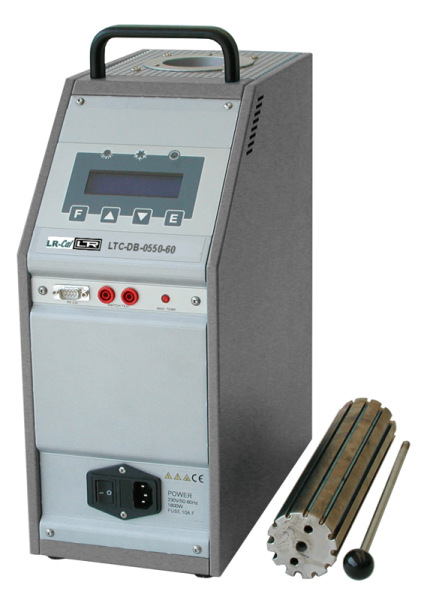

LR-Cal LTC-DB-0550-60 dry block temperature calibrator

Portable metal dry block temperature calibrator
Range ambient temperature to +550°C
Accuracy ±0.3°C, stability ±0.05°C
Dry block: 60 mm diameter
Particularly large immersion depth: 275 mm

Removal of metal block insert on the
LR-Cal
LTC-DB-0550-60

View from above
LR-Cal
LTC-DB-0550-60

Description

LR-Cal LTC-DB-0550-60 description

The LR-Cal LTC-DB-0550-60 metal block temperature calibrator with a particularly large immersion depth serves as both a temperature source and a reference device for testing and calibrating all types of temperature measuring instruments.

Temperature range from ambient temperature to +550°C
Ramp function
Thermostat tests
Computer-controlled calibrations via computer interface (PC software optionally available)
Various metal block inserts with different bores for test specimens available
Due to the large immersion depth, the holes are designed as milled recesses (around the circumference). When the insert is inserted, this results in the desired holes
Includes factory certificate of accuracy, stability, and performance
Computer interface (RS232, RS232-USB interface converter available as an accessory)

Note: This calibrator does NOT include a block insert in the standard scope of delivery.

Device versions

LR-Cal LTC-DB-0550-60 device versions

The dry block temperature calibrator LR-Cal LTC-DB-0550-60 can be supplied in two different versions:

Version LR-Cal LTC-DB-0550-60

Standard version
Order-Code LTC-DB-0550-60
Without inputs for resistance thermometer / thermocouples

Version LR-Cal LTC-DB-0550-60-2I

Version with 2 measuring inputs for resistance thermometers Pt 100 (2-, 3- or 4-wire) or Pt 1000 as well as thermocouples incl. cold junction compensation types B, E, J, K, N, R, S and T.
Order-Code LTC-DB-0550-60-2I
The signals from up to two external temperature sensors can also be displayed.
Extended scope of delivery:
Electrical connection cables, plugs/terminals for the electrical connections.

Accuracy (maximum deviation) of the two measuring inputs for device version "-2I":
Pt 100 or Pt 1000	at -40°C:	±0.09°C	at 0°C:	±0.08°C	at +150°C:	±0.11°C	at +300°C:	±0.14°C
Thermocouple type B	at +950°C:	±0.97°C	at +1050°C:	±1.03°C	at +1200°C:	±1.12°C
Thermocouple type E	at -40°C:	±0.42°C	at 0°C:	±0.40°C	at +350°C:	±0.61°C
Thermocouple type J	at +200°C:	±0.52°C	at +450°C:	±0.67°C	at +700°C:	±0.82°C
Thermocouples types K, N, R and S	at +400°C:	±0.64°C	at +700°C:	±0.82°C	at +1000°C:	±1.00°C
Thermocouple type T	at -40°C:	±0.42°C	at 0°C:	±0.40°C	at +350°C:	±0.61°C

Specification

LR-Cal LTC-DB-0550-60 specification

Description:	Data:
Temperature range (at +20°C ambient temperature)	+20°C...+550°C
Stability	±0.05°C (at 450°C) / ±0.09°F (at 842°F)
Radial temperature uniformity at 400°C at 100 mm	±0.1°C / ±0.1°F
Axial temperature uniformity at 400°C for 120 mm from the bottom	±0.3°C / ±0.5°F
Maximum heating time	9°C/min (48°F/min)
Maximum cooling time	1.6°C/min (35°F/min)
Display resolution	0.1°C / 0.01°F
Display accuracy	±0.3°C / ±0.5°F
Units of measurement	°C, °F, K
Serial interface	RS232
Well diameter	60 mm / 2.3 in.
Insert hole depth	275 mm / 10.8 in.
Power supply	230 VAC - 50/60 Hz
Electric power	1700 W
Calibrator size	170 x 450 x 330 mm 6.6 x 17.7 x 12.9 in.
Calibrator weight	23 kg / 50 lb
Order-Code (standard version)	LTC-DB-0550-60
Order-Code (-2I version with 2 measuring inputs)	LTC-DB-0550-60-2I

Standard scope of delivery

LR-Cal LTC-DB-0550-60 standard scope of delivery

Portable metal block temperature calibrator LR-Cal LTC-DB-0550-60 or LR-Cal LTC-DB-0550-60-2I
Spare fuses
Power supply cable
Connection cable for thermostat tests
Removal tool for changing metal block inserts
Factory calibration certificate (performance and measurement accuracy)
Operating instructions EN

Additionally for LR-Cal LTC-DB-0550-60-2I version:

Electrical connection cables (red/black) and screw terminals (red/black) for the two measurement inputs

Available dry block inserts

LR-Cal LTC-DB-0550-60 available block inserts

Note: This calibrator does NOT include a block insert in the standard scope of delivery.

Order-Code	Description
LTC-BI-60-275-0	Dry block insert without holes (for self-drillings)
LTC-BI-60-275-4	Dry block insert with 4 millings, resulting ind 4 holes for test items with 4 + 6 + 9 + 12 mm diameter
LTC-BI-60-275-C12	Dry block insert with up to 12 millings, resulting in up to 12 holes with diameters as per customers request (each 3.0 to 6.5 mm diameter)

Options + further accessories

LR-Cal LTC-DB-0550-60 options + further accessories

DAkkS Certificate

Code: DKD-T-KAL-TK-6T

Option:
DAkkS calibration certificate
For the measuring chain consisting of calibrator display and reference sensor, 6 measuring points.

Trolley case

Code: LTC-DB-TROLLEY

Accessory:
Hard-shell trolley case with molded foam inserts
With extendable handle and wheels

Windows-PC software

Code: LTC-AQ2SP2

Accessory:
Windows-PC software Aq2Sp2
Download version

Special RS232 cable

Code: RS232-LTC-KABEL

Accessory:
Special RS232 connection cable

RS232-USB converter

Code: RS232-USB-KONV

Accessory:
Interface converter
RS232 to USB

What is temperature calibration with a metal dry block temperature calibrator?

What is temperature calibration with a metal block temperature calibrator?

The test item (temperature measuring instruments of all types, e.g. dial thermometers, glass thermometers, resistance thermometers, temperature switches, thermostats, etc.) and the reference temperature measuring instrument (installed in the calibrator or external reference) are both subjected to test temperatures. The measured values of the reference are compared with the values of the test item. In this way, a statement can be made not only about the function of the test item, but also about the measurement accuracy or the measured value deviation of the test item.

Please note that the specifications regarding radial and axial temperature uniformity given in the respective technical data refer to specific immersion depths and do not necessarily apply to all immersion depths in every case. The temperature range specifications apply at an ambient temperature of +20°C.

The LR-Cal metal block temperature calibrators have an internal (built-in) reference. If its accuracy is not sufficient, an external reference (without or with its own display) can be used.

The LTC-MP-3I option is available for LR-Cal LTC metal block temperature calibrators (except for versions LTC-DB-0550-60 and LR-Cal LTC-DB-1200-35), with three measurement inputs (2 x for RTD/TC and 1 x for analog signal 4... 20 mA/0...10 V).

The LR-Cal LTC-DB-0550-60 metal block temperature calibrator is available in two versions: standard version and “-2I” version with 2 measuring inputs (for RTD/TC).

This option is not available for the LR-Cal metal block temperature calibrators of the compact PYROS series.

Furthermore, the LR-Cal Aq2Sp2 PC software is available as an option for the LR-Cal metal block temperature calibrators. This allows the calibrator to be completely controlled from the PC via its serial interface, manual or automatic calibration of one or more DUTs, load and life tests, thermostat tests, as well as the generation of calibration certificates.

Synonyms

Metal block temperature calibrators are also referred to as

Dry block calibrator
Dry well calibrator
Calibration furnace
Temperature calibrator
Temperature calibration device
Temperature calibration furnace
