Written by AGENTUR BROGLIE on . Posted in Unkategorisiert-EN.

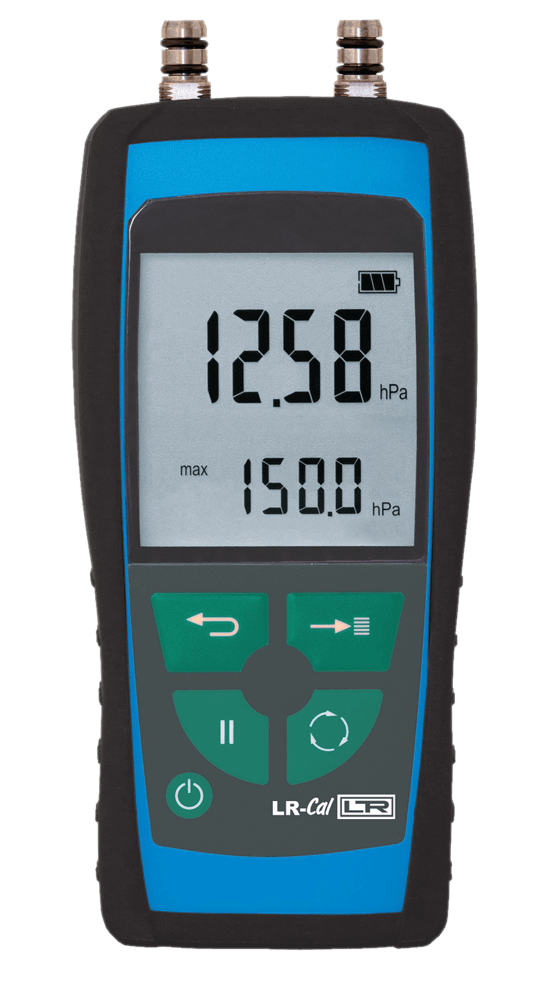

LR-Cal Serie 3000 handheld manometer

LR-Cal Serie 3000
Handheld digital pressure gauge

Brochures

LR-Cal Serie 3000 digital handheld manometer LR-Cal

Handheld digital pressure gauge
for small pressures, vacuum and differential pressures

  • Measuring ranges from 0...25 mbar to 0...8 bar
  • Accuracy depending on measuring range,
    up to ±0.003 mbar
  • Switchable pressure units
  • Min, Max and HOLD function
  • Incl. protective cover with magnet

  • Description

    LR-Cal Serie 3000 description

    The LR-Cal Series 3000 handheld digital pressure gauges measure with a piezoresistive sensor and are suitable for measuring clean and dry gases, e.g. air, nitrogen and many more.

    The LR-Cal Series 3000 instruments are used, for example, in laboratories, in quality assurance, by plant engineers, in the heating and ventilation industry, and in municipal and power plants - and more generally in industry for commissioning, maintenance and troubleshooting in pneumatic systems.

    Features:

    • Easy handling, robust, very good performance
    • Measurement of pressure, vacuum (negative pressure) and differential pressure
      (display of positive and negative overpressure)
    • Measuring ranges from 0...25 mbar to 0...8 bar
    • Zeroing at the touch of a button
    • Display in switchable pressure units,
      additionally Auto-Range function (display of the measured value in the highest possible display resolution).
    • Minimum and maximum value memory
    • HOLD function ("freezing" of the displayed measured value)
    • Switchable display backlight
    • Protective cover with magnet included

  • Specifikation

    LR-Cal Serie 3000 specification

    Pressure ports 2 x for hose with 8 mm inner diameter
    Reaction delay T 90 < 10 s
    Display 7-segment LCD, transflective, W 46 x H 48 mm, 2 lines each 4 figures
    Power supply Batteries 2 x 1.5 V Alcaline (AA, IEC, LR 6), included in standard delivery
    Battery life time max. 60 hours without or max. 40 hours with backlight
    Dimensions 66 x 37 x 143 mm (width x height x depth, incl. protective cover)
    Housing material Plastic (PA), protection case soft plastic (TPE)
    Permitted ambient temperature 0°C...+40°C
    Permitted medium temperature 0°C...+40°C
    Permitted storage temperature -20°C...+50°C
    Electrical safety Protection degree IP 40 (EN 60529)
    Electromagnetic compatibility (EMC) Interference emission DIN EN 55022 (VDE 0878-22)
    Interference immunity DIN EN 61000-4-3 (VDE 0847-4-3)
    ESD DIN EN 61000-4-2 (VDE 0847-4-2)
    Keypad Foil keypad (5 buttons)
    Weight approx. 250 g
    Directives and standards 2014/30/EU (CE), DIN EN 50379, WEEE/RoHS

  • Pressure ranges

    LR-Cal Serie 3000 pressure ranges

    Order-Code Range
    nominal
    		 Range
    maximal    		 Maximal
    overload
    		 Resolution Accuracy
    % of measured value
    		 Selectable
    pressure units
    3000-3002 25 mbar 30 mbar 0.25 bar 0.001 mbar (<9.999 mbar)
    0.01 mbar (>10.00 mbar)    		 1.0 ±1 digit
    or ±0.003 mbar    		 Pa + hPa + kPa + mbar
    psi + inHg + mmHg
    3000-3015 150 mbar 180 mbar 1.35 bar 0.01 mbar (<19.99 mbar)
    0.1 mbar (>20.0 mbar)    		 1.0 ±1 digit
    or ±0.03 mbar    		 Pa + hPa + kPa + mbar
    psi + inHg + mmHg
    3000-3100 1 bar 1,5 bar 3.0 bar 0.1 mbar (<199.9 mbar)
    1 mbar (>200 mbar)    		 1.0 ±1 digit
    or ±0.3 mbar    		 hPa + kPa + mbar + bar
    psi + inHg + mmHg
    3000-3800 8 bar 9.999 bar 16.0 bar 1 mbar 1.0 ±1 digit
    or ±5.0 mbar    		 hPa + kPa + mbar + bar
    psi + inHg + mmHg

  • Scope of standard supply

    LR-Cal Serie 3000 scope of standard supply

    • Digital hendheld pressure gauge LR-Cal Serie 3000
    • Protective cover with magnet
    • 2 batteries 1.5 V (size AA)
    • Test certificate
    • Operating manual DE+EN

  • Accessories

LR-Cal Serie 3000 accessories

  • 2950-KOFFER

    Case

    Code: 2950-KOFFER

    Accessory:
    Storage and transport case with molded foam insert

  • 3000-ADAPT-I25

    Adapter D8 to D3
    for LR-Cal LPP 10

    Code: 3000-ADAPT-I25

    Accessory:
    Hose adapter for pressure connection
    for connection of hose
    with 2.5 mm inner diameter

    Is needed if the instrument is used with pressure test pump
    LR-Cal LPP 10

  • T-STUECK-4-6-4

    Quick coupling T-piece
    for LR-Cal 2911/2941

    Code: T-STUECK-4-6-4

    Accessory:
    T-piece with quick-coupling for hose with
    1 x 6 mm outer diameter
    2 x 4 mm outer diameter

    Is needed if the instrument is used with pressure test pump
    LR-Cal 2911/2941

Read more …LR-Cal Serie 3000 handheld manometer

  • Hits: 2853

Written by AGENTUR BROGLIE on . Posted in Unkategorisiert-EN.

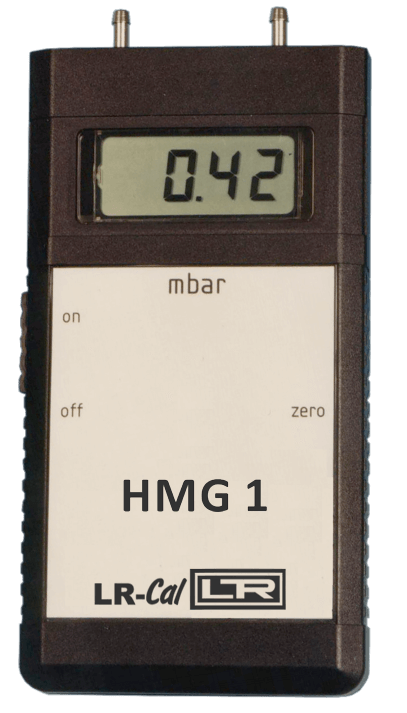

LR-Cal HMG 1 handheld manometer

LR-Cal HMG 1
Handheld digital pressure gauge

LR-Cal HMG 1 digital handheld manometer LR-Cal

Digital hand manometer
for small pressures, vacuum, differential pressures and absolute pressure

  • Measuring ranges from 0...1 mbar to 0...10 bar
  • Potentiometer for zero point adjustment
  • Optionally with analog output 0...1 VDC

  • Description

    LR-Cal HMG 1 description

    The LR-Cal HMG 1 digital handheld pressure gauges are suitable for measuring non-corrosive and non-ionic liquids and gases, e.g. air, dry gases, hydraulic fluids. In addition to differential pressure, they also measure positive and negative overpressure and optionally volume flow. These process variables are displayed on a 3 1/2-digit LCD with 12.7 mm digit height, and optionally supplied to a 0...1 V analog output.

    High reliability and accuracy is achieved by using piezoresistive measuring elements. The power supply is provided by a 9V block battery (type 6F22). If the minimum permissible operating voltage is not reached, "low Bat" is indicated on the LC display. Each unit is supplied with a measurement protocol.

    Typical applications:

    • Monitoring of air filters and blowers
    • Level monitoring of liquids
    • Air flow monitoring
    • Pressure monitoring in clean rooms
    • Medical technology

    Available versions:

    • Type LR-Cal HMG 1: without analog output
    • Type LR-Cal HMG1-A: with analog output

  • Specification

    LR-Cal HMG 1 specification

    Operating temperature 0...+50°C
    Hysteresis 0.1%
    Measurements per second 2.5
    Medium Air, non-corrosive and non-ionic gases, hydraulic fluids
    Pressure ports 2 x for hose with 4 mm inner diameter
    (Absolute pressure: just 1 port)
    Weight approx. 190 g (incl. batterie)
    Protection degree IP 54
    Dimension 85 x 160 x 31 mm
    Optional analogue output 0...1 V, RL >= 2 KOhm
    Electr. connection: 3.5 mm jack plug, 2-pole
    ZERO point adjustment via potentiometer at the side of the handheld housing

  • Pressure ranges

    LR-Cal HMG 1 pressure ranges

    Pressure range Pressure range Max. overpressure Linearity
    error    		 Temperature
    error 0-50°C    		 Long time
    stability    		 Repeatability
    [mbar] [kPa] [mbar] max. [% FS] max. [% FS] [% FS]/year [% FS]
    1 0.1 250 0.5 4 2 1
    2.5 0.25 250 0.8 2.5 2 0.3
    5 0.5 250 0.8 1.2 1 0.3
    10 1 250 0.8 1.0 0.5 0.2
    25 2.5 350 0.7 1.0 0.1 0.1
    50 5 350 0.7 1.0 0.1 0.1
    100 10 350 0.5 1.0 0.1 0.1
    1,000 100 350 0.5 1.0 0.1 0.1
    1,999 200 4,000 0.5 1.0 0.1 0.1
    10 bar 1,000 12 bar 0.5 2.0 0.1 0.1
    700...1,100 absolute 70...110 absolute 3-fold ±0.9 mbar ±2.3 mbar 0.1 0.1

  • Scope of standard supply

    LR-Cal HMG 1 scope of standard supply

    • Digital handheld pressure gauge LR-Cal HMG 1
    • Test certificate
    • Operating manual DE+EN



  • Accessories

LR-Cal HMG 1 accessories

  • 500.9.000.0001.0

    Hydrophobic filter

    Code: 500.9.000.0001.0

    Accessory:
    Hydrophobic filter (max. 2 bar!)
    gas permeable, blocks liquids/moisture,
    for hose with
    4 mm inner diameter and
    6 mm outer diameter

  • 2950-KOFFER

    Case

    Code: 2950-KOFFER

    Accessory:
    Storage and transport case with molded foam insert

Read more …LR-Cal HMG 1 handheld manometer

  • Hits: 2702

Written by AGENTUR BROGLIE on . Posted in Unkategorisiert-EN.

LR-Cal LPP-KIT with LR-Cal LHM

LR-Cal LPP-KIT pressure calibration kit
with LR-Cal LHM as reference,
accuracy up to ±0.05% FS

Brochure

LR-Cal LPP-KIT Druckkalibrierkoffer mit LR-Cal LHM als Referenzgerät LR-Cal

Pressure calibration case (pressure generation + reference)

  • with handheld calibrator LR-Cal LHM
  • accuracy ±0,05% FS oder ±0,1% FS
  • interchangeable sensors (several measuring ranges with one device)
  • pneumatic LR-Cal LPP-KIT with LR-Cal LHM

    mit LR-Cal LHM, pneumatisch

    LPP-KIT-PK-LHM:
    pneumatic, -1...+1 to 0...50 bar

  • hydraulic LR-Cal LPP-KIT with LR-Cal LHM

    mit LR-Cal LHM, hydraulisch

    LPP-KIT-HK-LHM:
    hydraulic, 0...50 to 0...1,000 bar

  • combined LR-Cal LPP-KIT pressure calibration case with LR-Cal LHM

    mit LR-Cal LHM, pneumatisch UND hydraulisch

    LPP-KIT-PH-LHM:
    pneumatic AND hydraulic (combination kit)
    -1...+1 to 0...1,000 bar

  • Pneumatic kits (-1...+1 to 0...50 bar): scope of delivery + pressure ranges

    LPP-KIT-PK-LHM

    LR-Cal LPP-KIT mit LR-Cal LHM - pneumatisch

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 40
    • 1 set of threaded adapter with seals, BSP threads
    • 1 precision handheld LR-Cal LHM
    • 1 internal or 1 external pressure sensor
    • if supplied with external pressure sensor: 1 connection cable
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 set of threaded adapter with seals, BSP threads

    Chose one from the following available pressure ranges (all ±0.1% FS, optional ±0.05% FS):

    with external pressure sensor

    • 0...10 bar
    • 0...20 bar
    • 0...50 bar

    with internal pressure sensor

    • 0...0.1 bar (0...100 mbar)
    • 0...0.5 bar (0...500 mbar)
    • 0...1 bar
    • 0...2,5 bar
    • 0...5 bar

    • -0.1...+0.1 bar (-100...+100 mbar)
    • -0.5...+0.5 bar (-500...+500 mbar)
    • -1...+1 bar
    • -1...+2.5 bar
    • -1...+5 bar

    • 0...0.5 bar absolute (0...500 mbar absolute)
    • 0...1 bar absolute
    • 0...2,5 bar absolute
    • 0...5 bar absolute

    LPP-KIT-PK-LHM

  • Hydraulic kits (0...50 to 0...1,000 bar): scope of delivery + pressure ranges

    LPP-KIT-HK-LHM

    LR-Cal LPP-KIT with LR-Cal LHM - hydraulic

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
    • 1 set of threaded adapter with seals, BSP threads
    • 1 precision handheld LR-Cal LHM
    • 1 external pressure sensor with connection cable
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 storage and transport case with molded foam insert

    Choose one from following available pressure ranges (all ±0.1% FS, optional ±0.05% FS):

    • 0...50 bar
    • 0...100 bar
    • 0...250 bar
    • 0...350 bar
    • 0...500 bar
    • 0...700 bar
    • 0...1,000 bar

    LPP-KIT-HK-LHM

  • Combined kits (-1...+1 to 0...1,000 bar): scope of delivery + pressure ranges

    LPP-KIT-PH-LHM

    LR-Cal LPP-KIT with LR-Cal LHM - combined kits (pneumatic AND hydraulic):

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 40
    • 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
    • 1 set of threaded adapter with seals, BSP threads
    • 1 precision handheld LR-Cal LHM
    • 2 external pressure sensors with connection cables, or 1 internal + 1 external pressure sensor
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 storage and transport case with molded foam insert

    Choose TWO from following available pressure ranges (all ±0.1% FS, optional ±0.05% FS):

    with external pressure sensor

    • 0...10 bar
    • 0...20 bar
    • 0...50 bar
    • 0...100 bar
    • 0...250 bar
    • 0...350 bar
    • 0...500 bar
    • 0...700 bar
    • 0...1,000 bar

    with internal pressure sensor

    • 0...0.1 bar (0...100 mbar)
    • 0...0.5 bar (0...500 mbar)
    • 0...1 bar
    • 0...2,5 bar
    • 0...5 bar

    • -0.1...+0.1 bar (-100...+100 mbar)
    • -0.5...+0.5 bar (-500...+500 mbar)
    • -1...+1 bar
    • -1...+2.5 bar
    • -1...+5 bar

    • 0...0.5 bar absolut (0...500 mbar absolute)
    • 0...1 bar absolute
    • 0...2.5 bar absolute
    • 0...5 bar absolute

    LPP-KIT-PH-LHM

Read more …LR-Cal LPP-KIT with LR-Cal LHM

  • Hits: 2198

Written by AGENTUR BROGLIE on . Posted in Unkategorisiert-EN.

LR-Cal LPP-KIT with LR-Cal TLDMM-3.0

LR-Cal LPP-KIT pressure calibration kit
with LR-Cal TLDMM-3.0 as reference
Accuracy ±0.025/0.05% FS

Brochure

LR-Cal LPP-KIT pressure calibration kit with LR-Cal TLDMM-3.0 as reference instrument LR-Cal

Pressure calibration case (pressure generation + reference)

  • with pressure calibrator LR-Cal TLDMM-3.0
  • accuracy ±0.025/0.05% FS
  • pneumatic LR-Cal LPP-KIT with LR-Cal TLDMM-3.0

    mit LR-Cal TLDMM-3.0, pneumatic

    LPP-KIT-PD-05:
    pneumatic, -1...+1 to 0...50 bar

  • hydraulic LR-Cal LPP-KIT with LR-Cal TLDMM-3.0

    mit LR-Cal TLDMM-3.0, hydraulisch

    LPP-KIT-HD-05:
    hydraulic, 0...50 to 0...1,000 bar

  • combined LR-Cal LPP-KIT pressure calibration case with LR-Cal TLDMM-3.0

    mit LR-Cal TLDMM-3.0, pneumatic AND hydraulic

    LPP-KIT-PH-D-05:
    pneumatic AND hydraulic (combination kit)
    -1...+1 to 0...1,000 bar

  • Pneumatic kits (-1...+1 to 0...50 bar): scope of delivery + pressure ranges

    LPP-KIT-PD-05

    LR-Cal LPP-KIT with LR-Cal TLDMM-3.0 - pneumatic

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 40
    • 1 set of threaded adapter with seals, BSP threads
    • 1 pressure calibrator LR-Cal TLDMM-3.0
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 storage and transport case with molded foam insert

    Choose one from the following available pressure ranges (all ±0.05% FS):

    • 0...1 bar
    • 0...2.5 bar
    • 0...5 bar (optional ±0.025% FS)
    • 0...10 bar (optional ±0.025% FS)
    • 0...20 bar (optional ±0.025% FS)
    • 0...50 bar (optional ±0.025% FS)

    • -1...+1 bar
    • -1...+2.5 bar
    • -1...+5 bar (optional ±0.025% FS)
    • -1...+10 bar (optional ±0.025% FS)
    • -1...+20 bar (optional ±0.025% FS)
    • -1...+40 bar (optional ±0.025% FS)

    LPP-KIT-PD-05

  • Hydraulic kits (0...50 to 0...1,000 bar): scope of delivery + pressure ranges

    LPP-KIT-HD-05

    LR-Cal LPP-KIT with LR-Cal TLDMM-3.0 - hydraulic

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
    • 1 set of threaded adapter with seals, BSP threads
    • 1 pressure calibrator LR-Cal TLDMM-3.0
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 storage and transport case with molded foam insert

    Choose one from following available pressure ranges (all ±0.05% FS):

    • 0...50 bar (optional ±0.025% FS)
    • 0...100 bar (optional ±0.025% FS)
    • 0...250 bar (optional ±0.025% FS)
    • 0...350 bar (optional ±0.025% FS)
    • 0...500 bar (optional ±0.025% FS)
    • 0...700 bar (optional ±0.025% FS)
    • 0...1,000 bar (optional ±0.025% FS)

    LPP-KIT-HD-05

  • Combined kits (-1...+1 to 0...1,000 bar): scope of delivery + pressure ranges

    LPP-KIT-PH-D-05

    LR-Cal LPP-KIT with LR-Cal TLDMM-3.0 - combined kits (pneumatic AND hydraulic):

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 40
    • 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
    • 1 set of threaded adapter with seals, BSP threads
    • 2 pressure calibrators  LR-Cal TLDMM-3.0
    • 2 plug-in chargers 115...230 VAC
    • 2 USB cables
    • 1 storage and transport case with molded foam insert

    Choose TWO from following available pressure ranges (all ±0.05% FS):

    • 0...1 bar
    • 0...2.5 bar
    • 0...5 bar (optional ±0.025% FS)
    • 0...10 bar (optional ±0.025% FS)
    • 0...20 bar (optional ±0.025% FS)
    • 0...50 bar (optional ±0.025% FS)
    • 0...100 bar (optional ±0.025% FS)
    • 0...250 bar (optional ±0.025% FS)
    • 0...350 bar (optional ±0.025% FS)
    • 0...500 bar (optional ±0.025% FS)
    • 0...700 bar (optional ±0.025% FS)
    • 0...1,000 bar (optional ±0.025% FS)

    • -1...+1 bar
    • -1...+2.5 bar
    • -1...+5 bar (optional ±0.025% FS)
    • -1...+10 bar (optional ±0.025% FS)
    • -1...+20 bar (optional ±0.025% FS)
    • -1...+40 bar (optional ±0.025% FS)

    LPP-KIT-PH-D-05

Read more …LR-Cal LPP-KIT with LR-Cal TLDMM-3.0

  • Hits: 2220

Written by AGENTUR BROGLIE on . Posted in Unkategorisiert-EN.

LR-Cal LPP-KIT with LR-Cal LDM 80 +KL01

LR-Cal LPP-KIT pressure calibration kit
with LR-Cal LDM 80+KL01 as reference,
accuracy ±0.1% FS

Brochure

LR-Cal LPP-KIT pressure calibration cases with LR-Cal LDM 80+KL01 as reference gauge LR-Cal

Pressure calibration case (pressure generation + reference)

  • with digital pressure gauge LR-Cal LDM 80 with option KL01
  • accuracy ±0.1% FS
  • pneumatic LR-Cal LPP-KIT with LR-Cal LDM 80+KL01

    mit LR-Cal LDM 80+KL01, pneumatisch

    LPP-KIT-PD-10:
    pneumatic, -1...+1 to 0...50 bar

  • hydraulic LR-Cal LPP-KIT with LR-Cal LDM 80+KL01

    mit LR-Cal LDM 80+KL01, hydraulisch

    LPP-KIT-HD-10:
    hydraulic, 0...50 to 0...1,000 bar

  • combined LR-Cal LPP-KIT pressure calibration cases with LR-Cal LDM 80+KL01

    mit LR-Cal LDM 80+KL01, pneumatisch UND hydraulisch

    LPP-KIT-PH-D-10:
    pneumatic AND hydraulic (combination kit)
    -1...+1 to 0...1,000 bar

  • Pneumtaic kits (-1...+1 to 0...50 bar): scope of delivery + pressure ranges

    LPP-KIT-PD-10

    LR-Cal LPP-KIT with LR-Cal LDM 80+KL01 - pneumatic

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 40
    • 1 set of threaded adapter with seals, BSP threads
    • 1 digital pressure gauge LR-Cal LDM 80 with option KL01
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 storage and transport case with molded foam insert

    Choose one from the following available pressure ranges (all ±0.1% FS):

    • 0...1 bar
    • 0...2.5 bar
    • 0...5 bar
    • 0...10 bar
    • 0...20 bar
    • 0...50 bar

    • -1...+1 bar
    • -1...+2.5 bar
    • -1...+5 bar
    • -1...+10 bar
    • -1...+20 bar
    • -1...+40 bar

    LPP-KIT-PD-10

  • Hydraulic kits (0...50 to 0...1,000 bar): scope of delivery + pressure ranges

    LPP-KIT-HD-10

    LR-Cal LPP-KIT with LR-Cal LDM 80+KL01 - hydraulic

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
    • 1 set of threaded adapter with seals, BSP threads
    • 1 digital pressure gauge LR-Cal LDM 80 with option KL01
    • 1 plug-in charger 115...230 VAC
    • 1 USB cable
    • 1 storage and transport case with molded foam insert

    Choose one from following available pressure ranges (all ±0.1% FS):

    • 0...50 bar
    • 0...100 bar
    • 0...250 bar
    • 0...350 bar
    • 0...500 bar
    • 0...700 bar
    • 0...1,000 bar

    LPP-KIT-HD-10

  • Combined kits (-1...+1 to 0...1,000 bar): scope of delivery + pressure ranges

    LPP-KIT-PH-D-10

    LR-Cal LPP-KIT with LR-Cal LDM 80+KL01 - combined kits (pneumatic AND hydraulic):

    Scope of delivery:
    • 1 pressure test pump LR-Cal LPP 40
    • 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
    • 1 set of threaded adapter with seals, BSP threads
    • 2 digital pressure gauges LR-Cal LDM 80 with option KL01
    • 2 plug-in chargers 115...230 VAC
    • 2 USB cables
    • 1 storage and transport case with molded foam insert

    Choose TWO from following available pressure ranges (all ±0.1% FS):

    • 0...1 bar
    • 0...2.5 bar
    • 0...5 bar
    • 0...10 bar
    • 0...20 bar
    • 0...50 bar
    • 0...100 bar
    • 0...250 bar
    • 0...350 bar
    • 0...500 bar
    • 0...700 bar
    • 0...1.000 bar

    • -1...+1 bar
    • -1...+2.5 bar
    • -1...+5 bar
    • -1...+10 bar
    • -1...+20 bar
    • -1...+40 bar

    LPP-KIT-PH-D-10

Read more …LR-Cal LPP-KIT with LR-Cal LDM 80 +KL01

  • Hits: 2142

More Articles …
