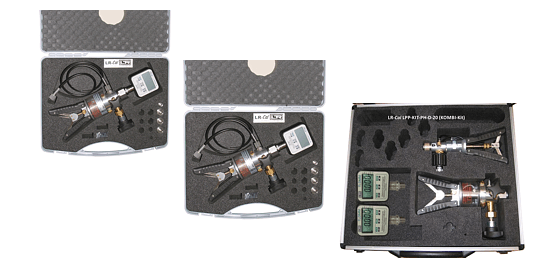

LR-Cal LPP-KIT pressure calibration kit
with LR-Cal TLDMM-3.0 as reference
Accuracy ±0.025/0.05% FS


Pressure calibration case (pressure generation + reference)
- with pressure calibrator LR-Cal TLDMM-3.0
- accuracy ±0.025/0.05% FS
- Datasheet pneumatic test pump LR-Cal LPP 40: EN
- Datasheet hydraulic test pump LR-Cal LPP 700: EN
- Datasheet hydraulic test pump LR-Cal LPP 1000: EN
- Datasheet digital gauge LR-Cal TLDMM-3.0: EN
- Datasheet pneumatic test pump LR-Cal LPP 40: DE
- Datasheet hydraulic test pump LR-Cal LPP 700: DE
- Datasheet hydraulic test pump LR-Cal LPP 1000: DE
- Datasheet digital gauge LR-Cal TLDMM-3.0: DE
- Manual pneumatic test pump LR-Cal LPP 40: DE+EN
- Manual hydraulic test pumps LR-Cal LPP 700/1000: DE+EN
- Manual digital gauge LR-Cal TLDMM-3.0: DE+EN
Pneumatic kits (-1...+1 to 0...50 bar): scope of delivery + pressure ranges
LPP-KIT-PD-05
LR-Cal LPP-KIT with LR-Cal TLDMM-3.0 - pneumatic
Scope of delivery:
- 1 pressure test pump LR-Cal LPP 40
- 1 set of threaded adapter with seals, BSP threads
- 1 pressure calibrator LR-Cal TLDMM-3.0
- 1 plug-in charger 115...230 VAC
- 1 USB cable
- 1 storage and transport case with molded foam insert
Choose one from the following available pressure ranges (all ±0.05% FS):
- 0...1 bar
- 0...2.5 bar
- 0...5 bar (optional ±0.025% FS)
- 0...10 bar (optional ±0.025% FS)
- 0...20 bar (optional ±0.025% FS)
- 0...50 bar (optional ±0.025% FS)
- -1...+1 bar
- -1...+2.5 bar
- -1...+5 bar (optional ±0.025% FS)
- -1...+10 bar (optional ±0.025% FS)
- -1...+20 bar (optional ±0.025% FS)
- -1...+40 bar (optional ±0.025% FS)
Hydraulic kits (0...50 to 0...1,000 bar): scope of delivery + pressure ranges
LPP-KIT-HD-05
LR-Cal LPP-KIT with LR-Cal TLDMM-3.0 - hydraulic
Scope of delivery:
- 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
- 1 set of threaded adapter with seals, BSP threads
- 1 pressure calibrator LR-Cal TLDMM-3.0
- 1 plug-in charger 115...230 VAC
- 1 USB cable
- 1 storage and transport case with molded foam insert
Choose one from following available pressure ranges (all ±0.05% FS):
- 0...50 bar (optional ±0.025% FS)
- 0...100 bar (optional ±0.025% FS)
- 0...250 bar (optional ±0.025% FS)
- 0...350 bar (optional ±0.025% FS)
- 0...500 bar (optional ±0.025% FS)
- 0...700 bar (optional ±0.025% FS)
- 0...1,000 bar (optional ±0.025% FS)

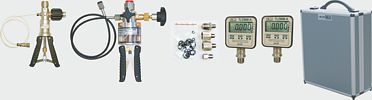

Combined kits (-1...+1 to 0...1,000 bar): scope of delivery + pressure ranges
LPP-KIT-PH-D-05
LR-Cal LPP-KIT with LR-Cal TLDMM-3.0 - combined kits (pneumatic AND hydraulic):
Scope of delivery:
- 1 pressure test pump LR-Cal LPP 40
- 1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
- 1 set of threaded adapter with seals, BSP threads
- 2 pressure calibrators LR-Cal TLDMM-3.0
- 2 plug-in chargers 115...230 VAC
- 2 USB cables
- 1 storage and transport case with molded foam insert
Choose TWO from following available pressure ranges (all ±0.05% FS):
- 0...1 bar
- 0...2.5 bar
- 0...5 bar (optional ±0.025% FS)
- 0...10 bar (optional ±0.025% FS)
- 0...20 bar (optional ±0.025% FS)
- 0...50 bar (optional ±0.025% FS)
- 0...100 bar (optional ±0.025% FS)
- 0...250 bar (optional ±0.025% FS)
- 0...350 bar (optional ±0.025% FS)
- 0...500 bar (optional ±0.025% FS)
- 0...700 bar (optional ±0.025% FS)
- 0...1,000 bar (optional ±0.025% FS)
- -1...+1 bar
- -1...+2.5 bar
- -1...+5 bar (optional ±0.025% FS)
- -1...+10 bar (optional ±0.025% FS)
- -1...+20 bar (optional ±0.025% FS)
- -1...+40 bar (optional ±0.025% FS)
