LR-Cal LPP 1000
Pressure test pump
Manual test pressure generation up to 1000 bar

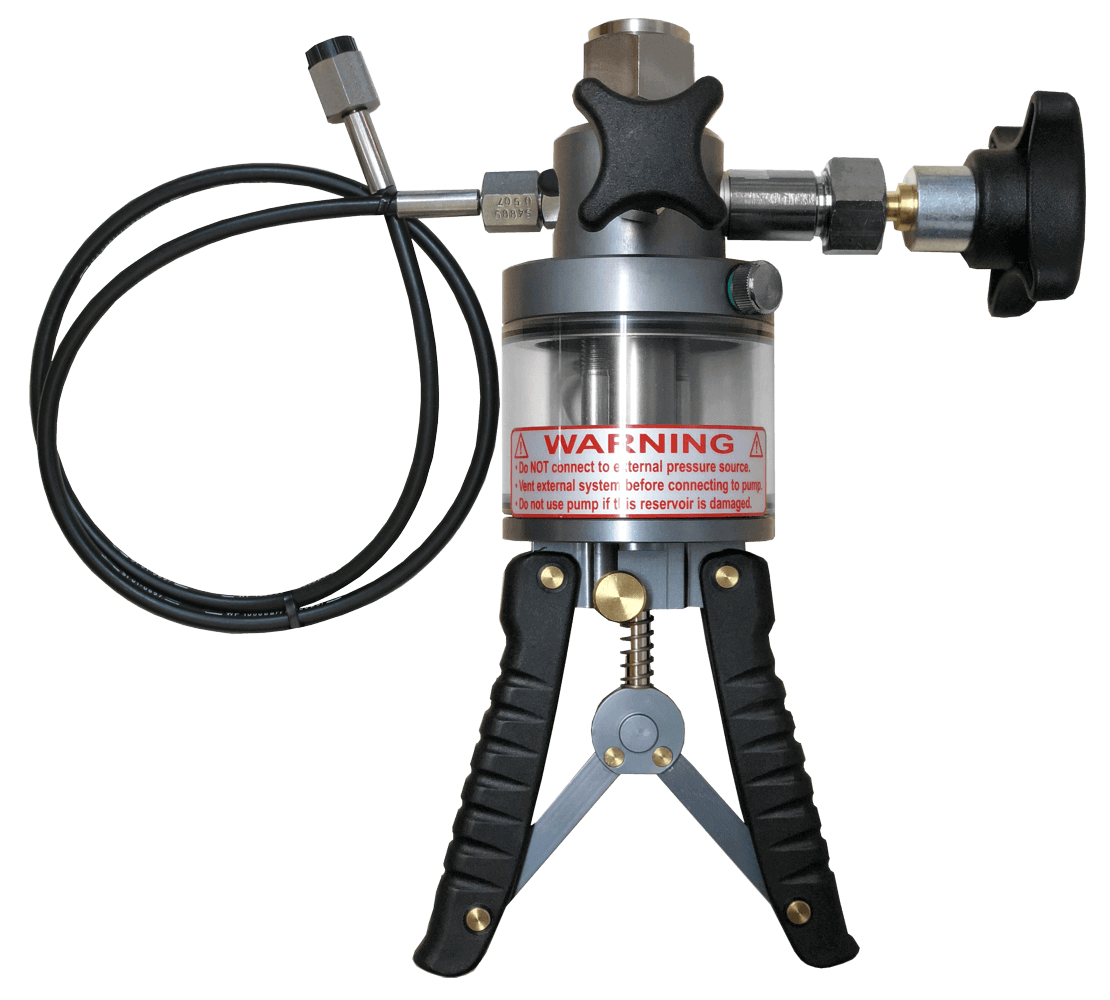

LR-Cal LPP 1000 pressure test pump up to 1000 bar
LR-Cal
  • Portable
  • Hydraulic (with oil or water)
  • Test pressure generation up to 1,000 bar (14,500 psi)
  • Simple generation, precise fine adjustment

LR-Cal LPP 1000 accessories + spare parts

Transport and storage
case

Code: LPP-H-KOFFER
LPP-H-KOFFER

Accessory:
Rigid transport and storage case with molded foam insert

Hydraulic oil
for LR-Cal LPP 700/1000

Code: CPB5000-FLUID
CPB5000-FLUID

Zubehör:
Acid free hydraulic oil
Bottle with 1 l capacity
Suitable for hydraulic calibration hand test pumps

Set of thread adapter
BSP

Code: LPP-ADAPTER-BSP
LPP-ADAPTER-BSP

Accessory:
Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump

  • 1/4" BSP m x 1/8" BSP female
  • 1/4" BSP m x 3/8" BSP female
  • 1/4" BSP m x 1/2" BSP female
  • 1/4" BSP m x 1/2" BSP male

O-ring seals for
BSP adapter

Code: LPP-O-RING-BSP
LPP-O-RING-BSP

Accessory:
Spare part for thread adapter set code LPP-O-RING-BSP:
Set of O-rings

Set of thread adapter
NPT (self-sealing)

Code: LPP-ADAPTER-NPT
LPP-ADAPTER-NPT

Accessory:
Set of NPT adapter incl. suitable O-ring seals for test item port of the pump

  • 1/4" BSP m x 1/8" NPT female
  • 1/4" BSP m x 1/4" NPT female
  • 1/4" BSP m x 3/8" NPT female
  • 1/4" BSP m x 1/2" NPT female

Set of thread adapter
metric + "Minimess"

Code: LPP-ADAPTER-M
LPP-ADAPTER-M

Accessory:
Set of metric adapter and "Minimess® 1620" for test item port of the pump

  • 1/4" BSP m x M 12 x 1,5 female
  • 1/4" BSP m x M 20 x 1,5 female
  • 1/4" BSP m x Minimess® 1620 female

Reference gauge DS 100
Accuracy ±0.6% FS

Code: LPP-MANO-K06
LPP-MANO-K06

Accessory:
Analog reference pressure gauge
DS 100, accuracy ±0.6 FS
LPP-MANO-0060: 0...60 bar/psi
LPP-MANO-0100: 0...100 bar/psi
LPP-MANO-0160: 0...160 bar/psi
LPP-MANO-0250: 0...250 bar/psi
LPP-MANO-0400: 0...400 bar/psi
LPP-MANO-0600: 0...600 bar/psi
LPP-MANO-1000: 0...1000 bar/psi

Maintenance kit
for LR-Cal LPP 1000

Code: LPP-H-WARTUNG
LPP-H-WARTUNG

Spare part:
Maintenance kit for LR-Cal LPP 1000
with O-rings, screw and seals

Manual DE-EN

High pressure
test hose 1,000 bar

Code: LPP-1000-SCHLAUCH-N
LPP-1000-SCHLAUCH-N

Spare part:
Pressure test hose
Length 1 meter
PN 1050 bar
1/4" BSP F union nut with 60° sealing cone on both sides

Additionally required for connection to the LR-Cal LPP 1000:
• LPP-1000-ADAPT-14I
• LPP-1000-DOPPELNIPPE

Adapter to 1/4" BSP
female for test item

Code: LPP-1000-ADAPT-14-I
LPP-1000-ADAPT-14-I

Spare part:
Adapter for connecting test specimens
1/4" BSP M with 60° sealing cone
x 1/4" BSP F for test item
PN 1000 bar

For mounting on the high-pressure test hose no. LPP-1000-SCHLAUCH-N, for connecting test specimens.

Double nipple to
connect to the pump

Code: LPP-1000-DOPPELNIPPE
LPP-1000-DOPPELNIPPE

Spare part:
Double nipple
1/4" BSP M with sealing cone 60°
x 1/4" BSP M to pump
PN 1000 bar

For mounting on the high-pressure test hose no. LPP-1000-SCHLAUCH-N, for connection to the pump.
