LR-Cal LPP-KIT pressure calibration kit
with LR-Cal LDM 80+KL01 as reference, accuracy ±0.1% FS

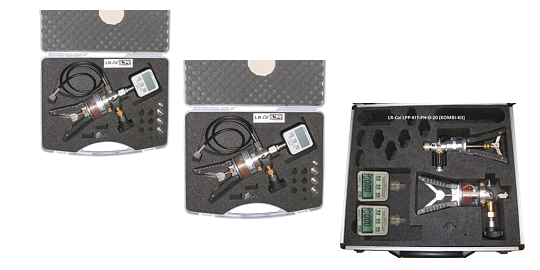

LR-Cal LPP-KIT pressure calibration cases with LR-Cal LDM 80+KL01 as reference gauge

Pressure calibration case (pressure generation + reference)

with digital pressure gauge LR-Cal LDM 80 with option KL01
accuracy ±0.1% FS

pneumatic LR-Cal LPP-KIT with LR-Cal LDM 80+KL01

LPP-KIT-PD-10:
pneumatic, -1...+1 to 0...50 bar

hydraulic LR-Cal LPP-KIT with LR-Cal LDM 80+KL01

LPP-KIT-HD-10:
hydraulic, 0...50 to 0...1,000 bar

combined LR-Cal LPP-KIT pressure calibration cases with LR-Cal LDM 80+KL01

LPP-KIT-PH-D-10:
pneumatic AND hydraulic (combination kit)
-1...+1 to 0...1,000 bar

Pneumtaic kits (-1...+1 to 0...50 bar): scope of delivery + pressure ranges

LPP-KIT-PD-10

LR-Cal LPP-KIT with LR-Cal LDM 80+KL01 - pneumatic

Scope of delivery:

1 pressure test pump LR-Cal LPP 40
1 set of threaded adapter with seals, BSP threads
1 digital pressure gauge LR-Cal LDM 80 with option KL01
1 plug-in charger 115...230 VAC
1 USB cable
1 storage and transport case with molded foam insert

Choose one from the following available pressure ranges (all ±0.1% FS):

0...1 bar
0...2.5 bar
0...5 bar
0...10 bar
0...20 bar
0...50 bar
-1...+1 bar
-1...+2.5 bar
-1...+5 bar
-1...+10 bar
-1...+20 bar
-1...+40 bar

LPP-KIT-PD-10

Hydraulic kits (0...50 to 0...1,000 bar): scope of delivery + pressure ranges

LPP-KIT-HD-10

LR-Cal LPP-KIT with LR-Cal LDM 80+KL01 - hydraulic

Scope of delivery:

1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
1 set of threaded adapter with seals, BSP threads
1 digital pressure gauge LR-Cal LDM 80 with option KL01
1 plug-in charger 115...230 VAC
1 USB cable
1 storage and transport case with molded foam insert

Choose one from following available pressure ranges (all ±0.1% FS):

0...50 bar
0...100 bar
0...250 bar
0...350 bar
0...500 bar
0...700 bar
0...1,000 bar

LPP-KIT-HD-10

Combined kits (-1...+1 to 0...1,000 bar): scope of delivery + pressure ranges

LPP-KIT-PH-D-10

LR-Cal LPP-KIT with LR-Cal LDM 80+KL01 - combined kits (pneumatic AND hydraulic):

Scope of delivery:

1 pressure test pump LR-Cal LPP 40
1 pressure test pump LR-Cal LPP 700 or LR-Cal LPP 1000
1 set of threaded adapter with seals, BSP threads
2 digital pressure gauges LR-Cal LDM 80 with option KL01
2 plug-in chargers 115...230 VAC
2 USB cables
1 storage and transport case with molded foam insert

Choose TWO from following available pressure ranges (all ±0.1% FS):

0...1 bar
0...2.5 bar
0...5 bar
0...10 bar
0...20 bar
0...50 bar
0...100 bar
0...250 bar
0...350 bar
0...500 bar
0...700 bar
0...1.000 bar
-1...+1 bar
-1...+2.5 bar
-1...+5 bar
-1...+10 bar
-1...+20 bar
-1...+40 bar

LPP-KIT-PH-D-10
