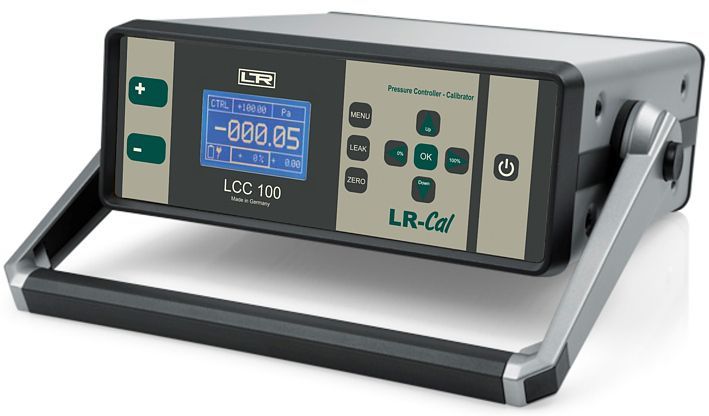

LR-Cal LCC 100 pressure controller
for small pressure, vacuum and differential pressure
Accuracy up to ±0.1% FS, ranges 0...1 bis 0...1,000 mbar

Pneumatic
Pressure and vacuum generation at the push of a button
Generates and measures small pressures and underpressures (vacuum)
Measuring accuracy up to ±0.1% FS (+1 digit)
High control accuracy 0.01% FS

LR-Cal LCC 100
in front of optional case

LR-Cal LCC 100
in optional case

Back side of the
LR-Cal LCC 100

Description

LR-Cal LCC 100 description

The LR-Cal LCC 100 pressure controller measures and generates pressure and negative pressure (vacuum) and can thus be used both as a reference pressure gauge and as a calibration device for pressure sensors, pressure switches and pressure gauges. Due to the internal pressure generation, no further accessories are required for operation. For mobile use, the LR-Cal LCC 100 is equipped with an internal lithium-ion battery. Parallel operation of mains and battery supply is possible without any problems and ensures the highest possible flexibility.

Typical applications:

Mobile and stationary reference pressure gauge for small pressures and vacuums
Mobile and stationary calibration of pressure and vacuum gauges of all types
Mobile and stationary pressure and vacuum controller for sensor calibrations
Density and leakage test

Specification + measuring ranges

LR-Cal LCC 100 specification + measuring ranges

Type	LCC 100-1	LCC 100-10	LCC 100-100	LCC 100-1000
Order-Code	LCC-100-1	LCC-100-10	LCC-100-100	LCC-100-1000
Pressure range	1 mbar	10 mbar	100 mbar	1000 mbar
Overpressure	5-fold	5-fold	5-fold	2-fold
Measurement Uncertainty (+1 digit)	±0.3% FS	±0.1% FS	±0.1% FS	±0.1% FS
Linearity ±1digit	±0.2% FS	±0.1% FS	±0.1% FS	±0.1% FS
Hysteresis	max. 0.1% FS
Measurement principle	inductive
Temperature drift of the internal reference sensor	Zero: 0.003% FS / K (0% via zero balance) Span: 0.03% FS / K
Zero balance	• automatic (in settable time spans, possible to swith of), or • manuel (by pressing the ZERO button)
Long-term stability of the internal reference sensor	0.1% FS per year (typical)
Temperature ranges	Working range +10...+40°C; Storage -10...+70°C
Usable pressure measuring range	-10...+110%
Adjustment accuracy	0.01% FS
Adjustment time	depending on volume, <5 sec
Measurement media	Air, non-aggressive and corrosion-free dry gases
Operation modes	• CTRL (controlling pressure) • MESS (measuring pressure) • AUTO (individually definable pressure profile) • Remote-controlled operation (via USB or RS232 interface)
Display	Graphic display (white on dark blackground)
Interfaces	USB and RS232
Supply	24 VDC / 1 A, build-in Li-Ion battery (8h typical) and mains charger 90...264 VAC
Pressure ports	6.6 x 11 mm (for flexible hose with 6 mm inner diameter)
Dimension	H 102,6 x W 257 x D 271 mm (without handel)

Notice:
The LR-Cal LCC 100 generates negative pressure (vacuum) in the amount of max. 10% of the positive pressure measuring range end value. If measurement and control is also to be performed in the negative range up to -100% of the final value, the (+) and (-) connections must be interchanged.
The integrated electric pump can generate max. -600 mbar negative pressure (vacuum). To generate higher negative pressures, we recommend an external manual vacuum pump, e.g. LR-Cal LPP 10 or LR-Cal 2941.

Operating modes

LR-Cal LCC 100 operating modes

Mode: MEASURE

The MEASURE mode is used to measure a differential or relative pressure. The pressure pump of the LR-Cal LCC 100 is not active in this mode. The pressure is measured directly by the internal reference sensor and displayed.

Mode: CONTROL

The CTRL mode is used for the calibration of pressure sensors, pressure switches and other pressure measuring devices. In CTRL mode, the pressure pump of the LR-Cal LCC 100 is active and regulates the set pressure accordingly. The pressure value is brought to the display.

Mode: AUTO

In AUTO mode, a pressure profile can be stored. This is particularly useful if several pressure gauges are to be calibrated with identical pressure values. In addition, this mode makes it possible to run a defined profile several times in succession.

The following figure shows a flow chart for the AUTO mode:
LR-Cal LCC 100 Darstellung Zyklen
(1) wait for the start command with OK key
(2) Waiting time (configurable)
(4) Duration of the system zeroing
(7) Dwell time at zero point
(9) Settling time until next step
(10) Dwell time
(13) Waiting time at maximum set pressure
(15) Time to adjust until next step
(16) Dwell time at zero point
(18) Waiting time (configurable)

Mode: LEAK TEST

In CTRL mode (Control mode), connected DUTs can be checked for leaks using the LEAK button.

Scope of standard supply

LR-Cal LCC 100 scope of standard supply

LR-Cal LCC 100 pressure controller with built-in lithium-ion rechargeable battery
Plug-in charger 90...264 VAC
Transparent test piece (DUT) connection hose
Factory calibration certificate
Operating manual DE+EN
