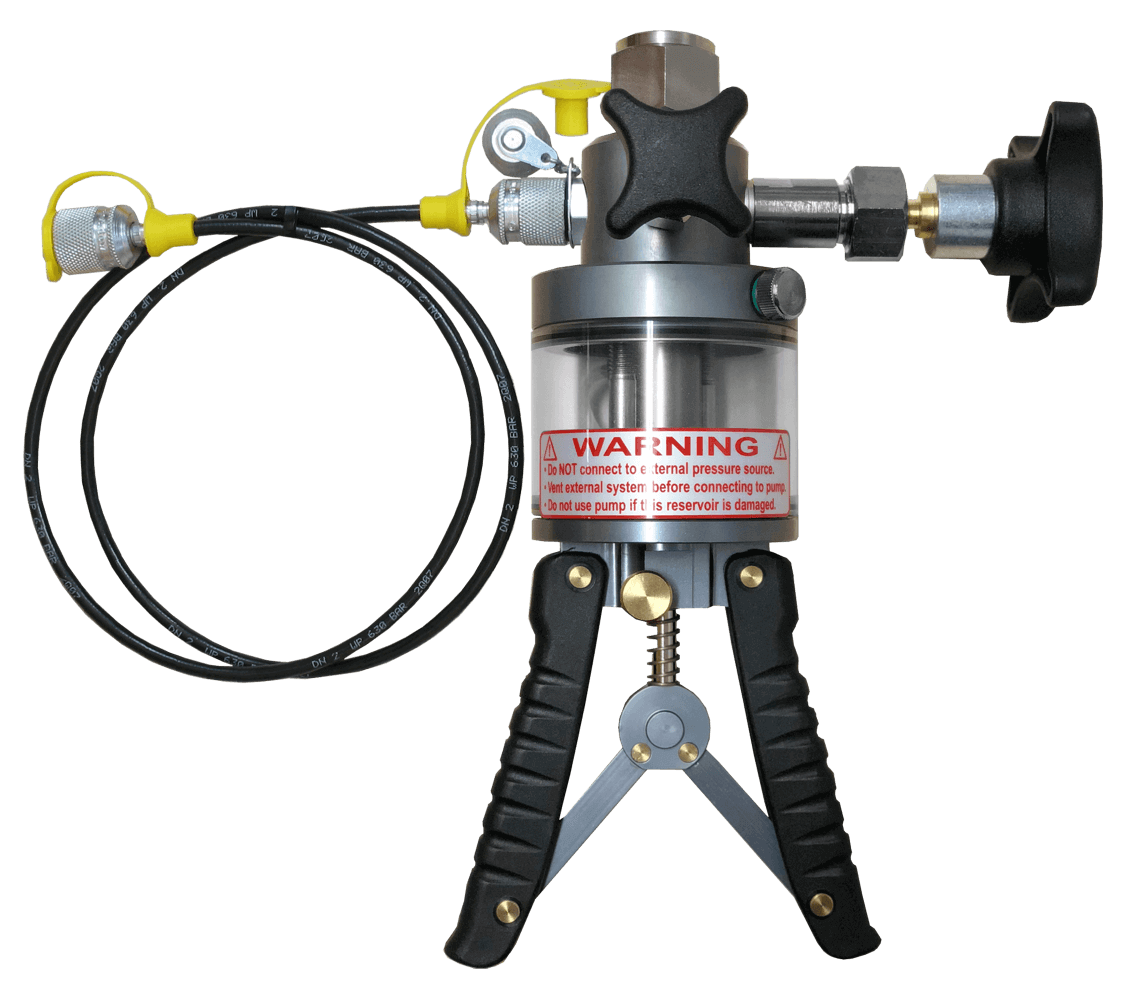

LR-Cal LPP 700
Pressure test pump
Manual test pressure generation up to 700 bar

Brochures
LR-Cal LPP 700 pressure test pump up to 700 bar
LR-Cal
  • Portable
  • Hydraulic (with oil or water)
  • Test pressure generation up to 700 bar (10,150 psi)
  • Simple generation, precise fine pressure adjustment

LR-Cal LPP 700 accessories + spare parts

Transport and storage
case

Code: LPP-H-KOFFER
LPP-H-KOFFER

Accessory:
Rigid transport and storage case with molded foam insert

Hydraulic oil
for LR-Cal LPP 700/1000

Code: CPB5000-FLUID
CPB5000-FLUID

Zubehör:
Acid free hydraulic oil
Bottle with 1 l capacity
Suitable for hydraulic calibration hand test pumps

Set of thread adapter
BSP

Code: LPP-ADAPTER-BSP
LPP-ADAPTER-BSP

Accessory:
Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump

  • 1/4" BSP m x 1/8" BSP female
  • 1/4" BSP m x 3/8" BSP female
  • 1/4" BSP m x 1/2" BSP female
  • 1/4" BSP m x 1/2" BSP male

O-ring seals for
BSP adapter

Code: LPP-O-RING-BSP
LPP-O-RING-BSP

Accessory:
Spare part for thread adapter set code LPP-O-RING-BSP
Set of O-rings

Set of thread adapter
NPT (self-sealing)

Code: LPP-ADAPTER-NPT
LPP-ADAPTER-NPT

Accessory:
Set of NPT adapter incl. suitable O-ring seals for test item port of the pump

  • 1/4" BSP m x 1/8" NPT female
  • 1/4" BSP m x 1/4" NPT female
  • 1/4" BSP m x 3/8" NPT female
  • 1/4" BSP m x 1/2" NPT female

Set of thread adapter
metric + "Minimess"

Code: LPP-ADAPTER-M
LPP-ADAPTER-M

Accessory:
Set of metric adapter and "Minimess® 1620" for test item port of the pump

  • 1/4" BSP m x M 12 x 1,5 female
  • 1/4" BSP m x M 20 x 1,5 female
  • 1/4" BSP m x Minimess® 1620 female

Reference gauge DS 100
Accuracy ±0.6% FS

Code: LPP-MANO-K06
LPP-MANO-K06

Accessory:
Analog reference pressure gauge
DS 100, accuracy ±0.6 FS
LPP-MANO-0060: 0...60 bar/psi
LPP-MANO-0100: 0...100 bar/psi
LPP-MANO-0160: 0...160 bar/psi
LPP-MANO-0250: 0...250 bar/psi
LPP-MANO-0400: 0...400 bar/psi
LPP-MANO-0600: 0...600 bar/psi
LPP-MANO-1000: 0...1000 bar/psi

Maintenance kit
for LR-Cal LPP 700

Code: LPP-H-WARTUNG
LPP-H-WARTUNG

Spare part:
Maintenance kit for LR-Cal LPP 700
with O-rings, screw and seals

Manual DE-EN

Coupling 1620
for connection to pump

Code: SMK-M16X2-G14A
SMK-M16X2-G14A

Spare part:
Assembly
Measuring coupling
MINIMESS® 1620" system
for connection to the side of the pressure test pump

Pressure test hose
with MINIMESS® port

Code: MMS-M16X2
MMS-M16X2

Spare part:
Assembly
Pressure test hose (max. +70°C)
System "MINIMESS® 1620"
The following lengths are available:
MMS-M16X2-1-0: length 1.0 meter
MMS-M16X2-2-0: length 2.0 meter
MMS-M16X2-3-2: length 3.2 meter
MMS-M16X2-4-0: length 4.0 meter

Test item connection
1/4" BSP female

Code: MSV-G14-M16X2
MSV-G14-M16X2

Spare part:
Assembly
Test piece connection
System "MINIMESS® 1620
with 1/4" BSP free running female thread
(manometer bulkhead fitting)
