LR-Cal PULSAR-80Cu
Dry block temperature calibrator
Ambient temperature ...+550°C
Description
LR-Cal PULSAR-80Cu description

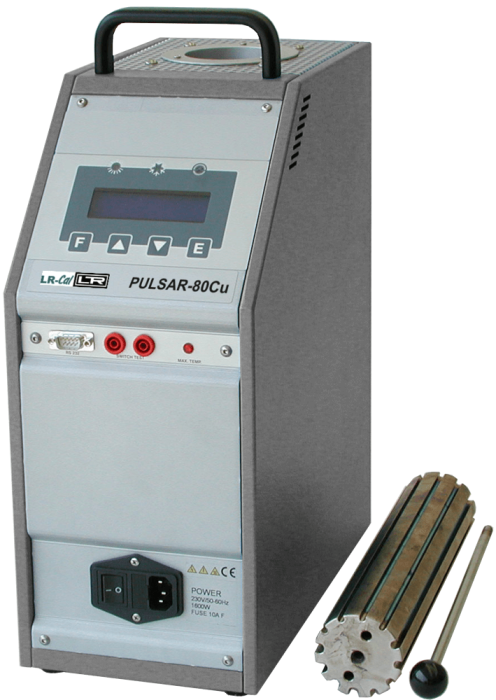

The LR-Cal PULSAR-80Cu dry block temperature calibrator serves as a temperature source and reference instrument in one, for testing and calibrating all types of temperature measuring instruments.
- Temperature range from ambient temperature to +550°C
- Particularly high immersion depth of 275 mm
- Ramp function
- Thermostat tests
- Computer-controlled calibrations via computer interface (PC software optionally available)
- Various dry block inserts with different bores for test specimens available.

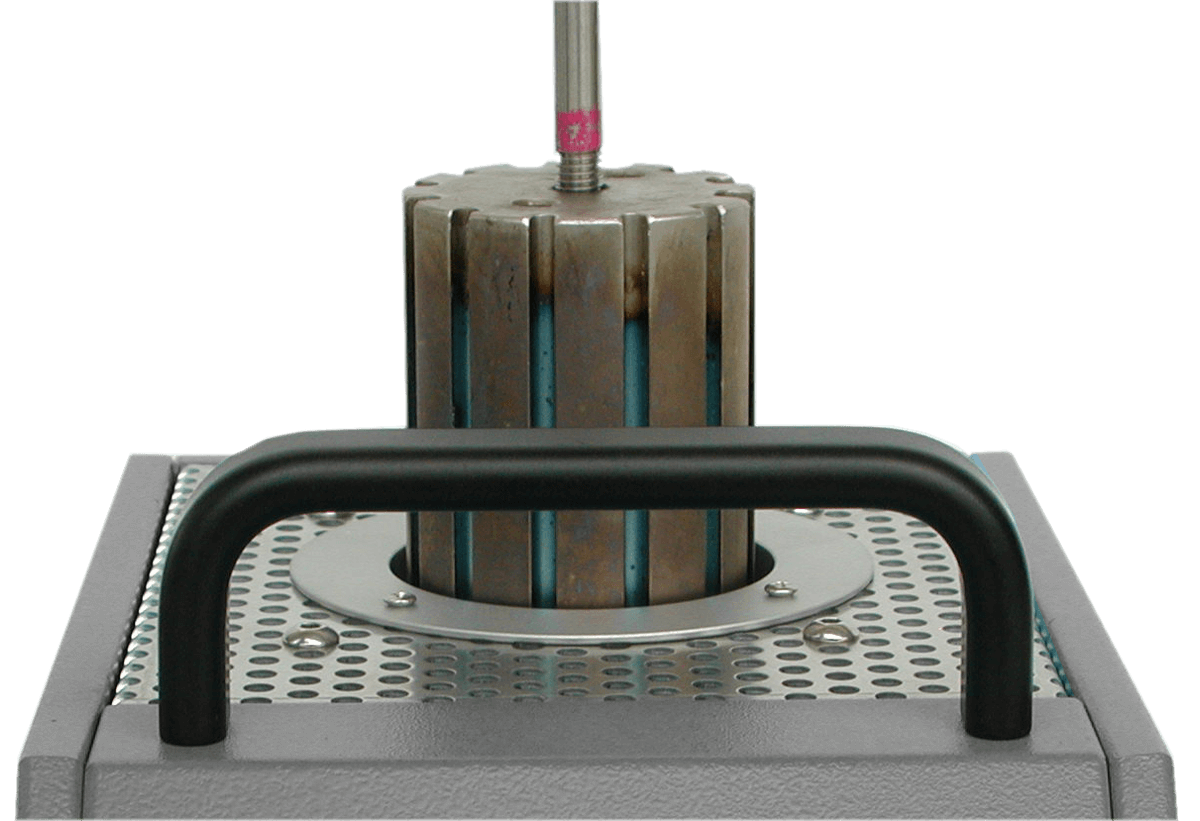

Due to the large insertion depth, the bores are realized as milled out holes (all around). When the insert is inserted, this then results in the desired bores - Incl. factory certificate (accuracy, stability, performance)
- Compunter interface (RS232, interface converter to USB available as accessory)
Device versions
LR-Cal PULSAR-80Cu device versions
The dry block temperature calibrator LR-Cal PULSAR-80Cu can be supplied in two different versions:
Version LR-Cal PULSAR-80Cu
Standard version
Order-Code PULSAR-80CU
Without inputs for resistance thermometer / thermocouples
Version LR-Cal PULSAR-80Cu-2I
Version with 2 measuring inputs for resistance thermometers Pt 100 (2-, 3- or 4-wire) or Pt 1000 as well as thermocouples incl. cold junction compensation types B, E, J, K, N, R, S and T.
Order-Code PULSAR-80CU-2I
The signals from up to two external temperature sensors can also be displayed.
Extended scope of delivery:
Electrical connection cables, plugs/terminals for the electrical connections.
Accuracy (maximum deviation) of the two measuring inputs for device version "-2I": | ||||||||
---|---|---|---|---|---|---|---|---|
Pt 100 or Pt 1000 | at -40°C: | ±0.09°C | at 0°C: | ±0.08°C | at +150°C: | ±0.11°C | at +300°C: | ±0.14°C |
Thermocouple type B | at +950°C: | ±0.97°C | at +1050°C: | ±1.03°C | at +1200°C: | ±1.12°C | ||
Thermocouple type E | at -40°C: | ±0.42°C | at 0°C: | ±0.40°C | at +350°C: | ±0.61°C | ||
Thermocouple type J | at +200°C: | ±0.52°C | at +450°C: | ±0.67°C | at +700°C: | ±0.82°C | ||
Thermocouples types K, N, R and S | at +400°C: | ±0.64°C | at +700°C: | ±0.82°C | at +1000°C: | ±1.00°C | ||
Thermocouple type T | at -40°C: | ±0.42°C | at 0°C: | ±0.40°C | at +350°C: | ±0.61°C |
Specification
LR-Cal PULSAR-80Cu specification
Description: | Data: | |
---|---|---|
Temperature range (at +20°C ambient temperature) | +20°C...+550°C | |
Stability | ±0.05°C (at 450°C) / ±0.09°F (at 842°F) | |
Radial temperature uniformity at 400°C at 100 mm | ±0.1°C / ±0.1°F | |
Axial temperature uniformity at 400°C for 120 mm from the bottom | ±0.3°C / ±0.5°F | |
Maximum heating time | 9°C/min (48°F/min) | |
Maximum cooling time | 1.6°C/min (35°F/min) | |
Display resolution | 0.1°C / 0.01°F | |
Display accuracy | ±0.3°C / ±0.5°F | |
Units of measurement | °C, °F, K | |
Serial interface | RS232 | |
Well diameter | 60 mm / 2.3 in. | |
Insert hole depth | 275 mm / 10.8 in. | |
Power supply | 230 VAC - 50/60 Hz | |
Electric power | 1700 W | |
Calibrator size | 170 x 450 x 330 mm 6.6 x 17.7 x 12.9 in. |
|
Calibrator weight | 23 kg / 50 lb | |
Order-Code (standard version) | PULSAR-80CU | |
Order-Code (-2I version with 2 measuring inputs) | PULSAR-80CU-2I |
Scope of standard supply
LR-Cal PULSAR-80Cu scope of standard supply
- Portable dry block temperature calibrator LR-Cal PULSAR-80Cu or LR-Cal PULSAR-80Cu-2I
- Spare fuses
- Cable for power supply
- Connection cable for thermostat tests
- Removing tool to change dry block insert
- Factory certificate (accuracy, stability, performance)
- Operating manual EN
Additional for version LR-Cal PULSAR-80Cu-2I:
- Electrical connection cables (red/black) and screw terminals (red/black) for the two measurement inputs
Available dry block inserts
LR-Cal PULSAR-80Cu available dry block inserts
Order-Code | Description |
---|---|

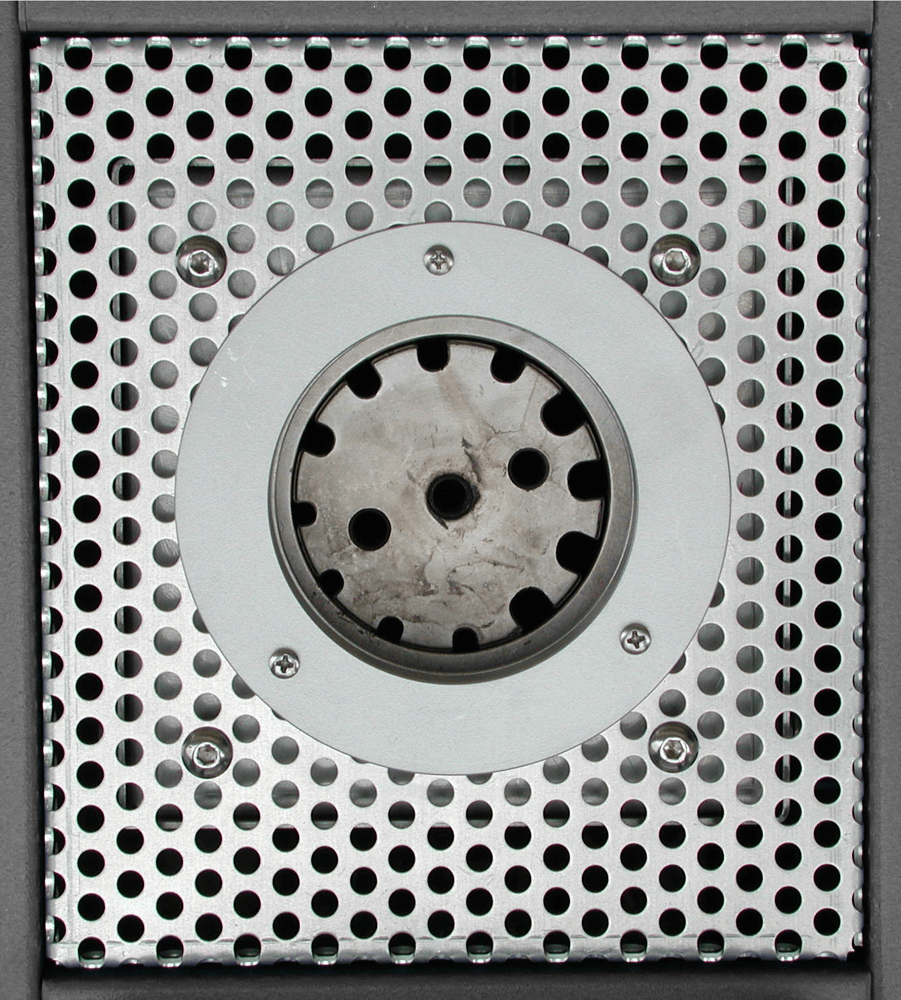

PULSAR-80CU-INS-04 | Dry block insert with 4 milled out holes, results in holes for test specimens with 4 + 6 + 9 + 12 mm diameter |
PULSAR-80CU-INS-12 | Dry block insert with a maximum of 12 milled out holes, resulting in a maximum of 12 holes with customer-specific diameters (3.0 to 6.5 mm diameter, if feasible) |
LR-Cal PULSAR-80Cu other accessories + spare parts
DAkkS certification

Option:
DAkkS certification for the measuring chain consisting of display of the calibrator and internal reference sensor at 6 measuring points
Trolley suitcase

Accessory:
Case with molded foam inserts
for LR-Cal PULSAR-80Cu(-2I)
With extendable handle and wheels
Windows-PC software

Accessory:
Windows-PC software AQ2Sp2
Download version
incl. RS232 connection cable
RS232-USB converter

Accessory:
Interface converter
RS232 to USB
The test item (temperature measuring instruments of all types, e.g. dial thermometers, resistance thermometers, temperature switches, thermostats, etc.) and the reference temperature measuring instrument (installed in the calibrator or external reference) are both subjected to test temperatures. The measured values of the reference are compared with the values of the test item. In this way, a statement can be made not only about the function of the test item, but also about the measurement accuracy or the measured value deviation of the test item.
Please note that the specifications regarding radial and axial temperature uniformity given in the respective technical data refer to specific immersion depths and do not necessarily apply to all immersion depths in every case. The temperature range specifications apply at an ambient temperature of +20°C.
The LR-Cal metal dry block temperature calibrators have an internal (built-in) reference. If its accuracy is not sufficient, an external reference (without or with its own display) can be used.
Furthermore, the LR-Cal AQ2sp2 PC software is available as an accessory for the LR-Cal metal block temperature calibrators. Herewith the calibrator can be controlled completely from the PC (if necessary with optional RS232/USB converter) via its serial interface, manual or automatic calibration of one or more DUTs, load and lifetime tests, thermostat tests, as well as the creation of calibration certificates.
