LR-Cal BT 400-OX + BT 800-OX

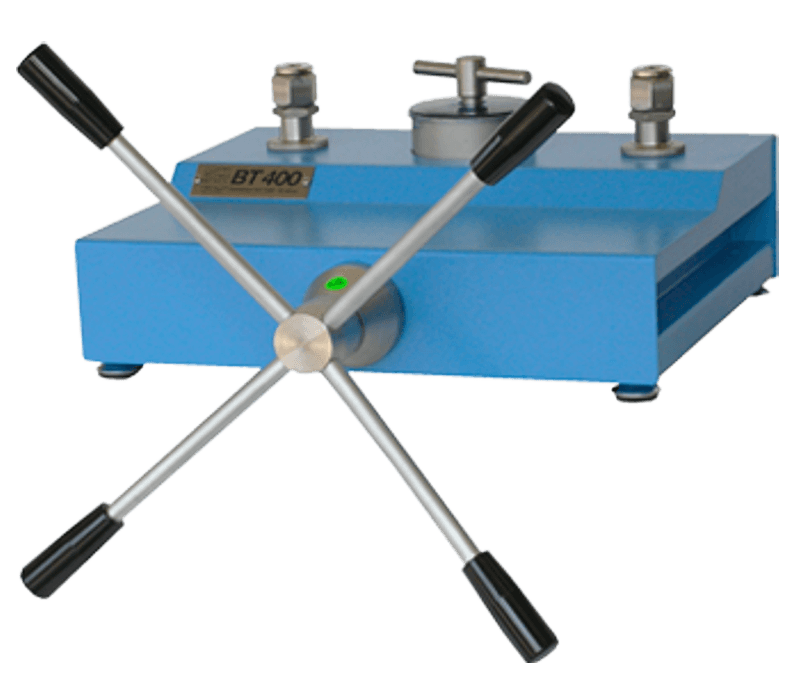

LR-Cal BT 400-OX pressure comparison test pump for oxygen applications

Manual spindle pump
Hydraulic (with water)
LR-Cal BT 400-OX: up to 400 bar
LR-Cal BT 800-OX: up to 800 bar
Free of oil and grease, suitable for oxygen
Simple generation, precise fine adjustment

LR-Cal BT 800-OX pressure comparison test pump for oxygen applications

LR-Cal BT 800-OX for oxygen,
up to 800 bar

Description

LR-Cal BT 400-OX + LR-Cal BT 800-OX description

The LR-Cal BT 400-OX and LR-Cal BT 800-OX pressure comparison test pumps are used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments (for oxygen applications) of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.

If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal BT 400-OX or LR-Cal BT 800-OX pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, the measuring accuracy can be checked or the pressure gauge to be tested can be adjusted.

The LR-Cal BT 400-OX and LR-Cal BT 800-OX pressure comparison testers (spindle pumps) are equipped with a finely actuated spindle wheel for exact approaching of the measuring points. The LR-Cal BT 400-OX and LR-Cal BT 800-OX pressure comparison test devices require only a fairly small amount of force.

Both pressure comparison test pumps are to be operated with distilled water. They are cleaned, free of oil and grease, and therefore ideal for testing pressure gauges for oxygen applications.

Specification

LR-Cal BT 400-OX specification

Type		LR-Cal BT 400-OX
Generation of pressure	[bar]	up to 400
System is tested at	[bar]	600
Volume	[cm³]	76
Volume changement per spindle turn	[cm³]	approx. 2
Thread length of spindle	[mm]	approx. 160
Needed force	[Nm]	at 50 bar approx. 9.8
Dimension	[mm]	450 x 360 x 300 (without star handle)
Weight	[kg]	14
Order-Code		BT400-OX

With Order-Code BT800-OX is version up to 800 bar is available (larger housing dimension).

Scope of standard supply

LR-Cal BT 400-OX (or LR-Cal BT 800-OX) scope of standard supply

Pressure comparison test pump LR-Cal BT 400-OX or LR-Cal BT 800-OX with pressure ports 1/2" BSP female
Wrench SW 27 for the pressure connections
Set of spare seals
Plastic box for storing the standard accessories
Operating manual DE+EN

Accessories + spare parts

LR-Cal BT 400-OX + LR-Cal BT 800-OX accessories + spare parts

HAP-02
hand suction pump

Code: HAP-02

Accessory:Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump.

NOT cleaned free of oil and grease.

Blind plug
for pressure ports

Code: BLINDSTOPFEN-G12-VA

Accessory:
Blind plug 1/2" BSP made of stainless steel for shutting off a pressure port.

NOT cleaned free of oil and grease
(for oxygen application this cleaning must be done by the customer, e.g. with petroleum ether)

Thread adapter
for pressure ports

Code: LSP-ADAPTER-SET

Accessory:
Stainless steel thread adapter set for pressure connection

1/2" BSP m x 1/4" BSP female
1/2" BSP m x 1/4" NPT female
1/2" BSP m x 1/2" NPT female
1/2" BSP m x M20 x 1.5 female

incl. PTFE sealing rings

NOT cleaned free of oil and grease
(for oxygen application, this cleaning must be done by the customer, e.g. with petroleum ether).

LR-Cal BT 400-OX + LR-Cal BT 800-OX Pressure comparison test pumps for oxygen applicationsManual test pressure generation up to 400 / 800 bar
