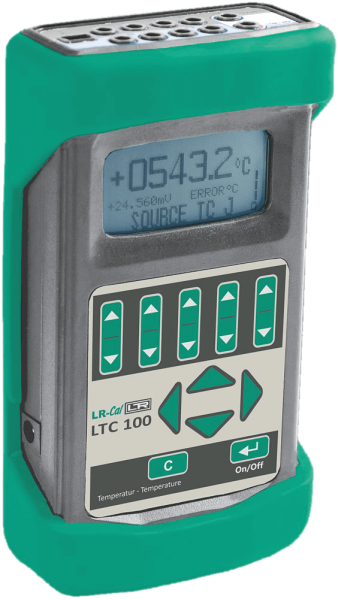

LR-Cal LTC 100

Portable multifunction temperature calibrator
Measure and give thermocouples, resistance thermometer, current, voltage and resistance
Data recording on SD memory card
Chargeable Lithium-ion battery powered

Electrical connections of the LR-Cal LTC 100

LR-Cal LTC 100
electrical connections

LR-Cal LTC 100
in standard case

LR-Cal LTC 100 with
terminal extension

Description

LR-Cal LTC 100 description

The portable multifunctional temperature calibrator LR-Cal LTC 100 is a hand-held measuring instrument for the adjustment and calibration of measuring instruments in process measurement technology.

Measurement of thermocouples, resistors, resistance thermometers, mA, mV and line continuities
Giving thermocouples, resistors, resistance thermometers, mA and mV
Simultaneous display of input and output signal
Internal 24 V loop supply to supply transmitters and for current measurement during calibrations
Programmable step and ramp functions
Graphical display of trends possible
Data recording on supplied SD memory card
USB interface
Built-in Lithium-Ion battery with charger

The LR-Cal LTC 100 temperature calibrator is a very accurate, portable hand-held measuring instrument for calibration and testing tasks as well as troubleshooting in temperature-dependent processes.

The calibrator simultaneously measures and outputs/simulates ten different thermocouple types and seven different resistance thermometer types. Measurement data can be simultaneously recorded to an included SD memory card. For your calibration tasks, the LR-Cal LTC 100 measures current while simultaneously outputting or simulating voltage, thermocouples, resistance thermometers or resistance.

The data logging function stores data on the included SD memory card. This data can be easily transferred to a PC via SD card or USB interface, where it can be evaluated using all standard spreadsheet programs.

The ability to display trends graphically is ideal for creating temperature profiles and for optimizing the setting of PID controllers, for example.

In addition, the temperature calibrator LR-Cal LTC 100 offers the best conditions for installation, adjustment and maintenance of self-supplied and externally supplied transmitters due to the integrated 24V loop supply. It is an ideal and cost-effective solution for setting, testing and calibration tasks in industrial environments and laboratories.

A plug-on terminal extension unit (with integrated cold junction compensation) and a plastic case with molded foam insert are included, as well as a protective rubber cap and an SD memory card.

The operator guidance of the LR-Cal LTC 100 temperature calibrator makes it very easy to use. For example, the help menu in the display shows how to make the electrical connections on the device for various measuring and testing tasks.

Specification

LR-Cal LTC 100 specification

MEASURING	Range:	Accuracy:	Resolution:
Milliamps mA	0...24 mA (Impedance ±17 Ohm)	0.02% FS	1 µA
Millivolts mV	-10...+100 mV (> 1 MegaOhm)	0.01% FS	1 µV
Thermocouples	Types J, K, T, E, N, U, L	0.1% FS *)	0.1°C
Thermocouples	Types B, R, S	1% FS *)	0.1°C
Resistance ****)	0...400.00 Ohm 0...2,200.0 Ohm	0.05% FS 0.05% FS	0.01 Ohm 0.1 Ohm
RTD ****)	Types Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120	0.1% FS	0.01°C
Continuity	with a 100 Ohm trigger. Visual and audible confirmation
SOURCING	Range:	Accuracy:	Resolution:
Milliamps mA	0...24 mA (max. load 500 Ohm)	0.02% FS	1 µA
Millivolts mV	-10...+100 mV (min. load 100 Ohm)	0.01% FS	1 µV
Thermocouples	Types J, K, T, E, N, U, L	0.1% FS *)	0.1°C
Thermocouples	Types B, R, S	1% FS *)	0.1°C
Resistance	10.00...400.00 Ohm ) 400.0...2,200.0 Ohm )	0.05% FS ) 0.05% FS )	0.01 Ohm 0.1 Ohm
RTD	Types Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120	0.1% FS	0.01°C
General Data
Isolation:	Max. 100 VDC between all input and output circuits
Thermocouple Extender:	Cold junction compensation Pt100 DIN EN 60751, 100 Ohm at 0°C, nom. resistance drift 0.04% after 1,000 h at 500°C
Power supply	Type: Lithium-Ion battery Charging time: approx. 5 h Life time: typical 8 h (depending on used functions)
Mains charger:	Charger input at calibrator: 10...15 VDC Charger input: 115...230 VAC; 0.5 A; 50/60 Hz Charger output: 12 VDC at 1.5 A
Optional car charger:	12 VDC at 1 A via cigarette lighter plug
Temperature ranges:	Storage: -40...+50°C incl. battery Usage: 0...50°C
Relative humidity:	0...85% r.F. (non-condensing)
Housing:	ABS-plastic OL94V-0 flame retardant, IP 54 dust and splash proof
Rubber boot:	green
Dimension:	without rubber boot 149 x 34 x 77 mm with rubber boot 155 x 43 x 86 mm
Weight:	approx. 340 g
