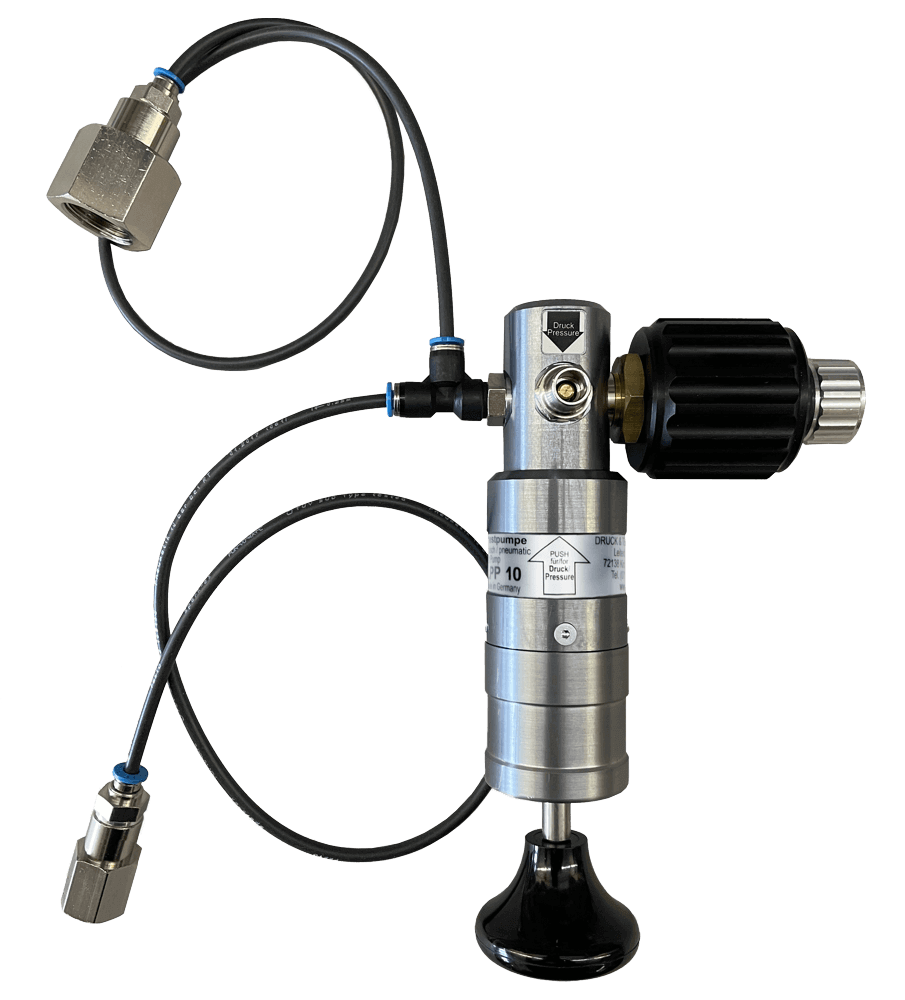

Pressure Test Pump
Model LR-Cal LPP 10
Generation of pressure and vacuum -0,85...+10 bar
- Pneumatic
- Making pressure to +10 bar (145 psi)
- Making vaccum to -0.85 bar (-25 inHg)
- Portable
- Easy operation
Description
LR-Cal LPP 10 Description
The pressure test pump LR-Cal LPP 10 is used to generate pressure and vacuum for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurements in the low-pressure and vacuum range. The pressure tests may be carried out in laboratories, workshops or on site at the measuring point.
If the instrument to be tested and a sufficiently accurate reference measuring instrument are connected up to the pressure test pump, the same pressure is applied to the two measuring instruments when the pump is operated. By comparing the two measure values at random pressure values, the accuracy can be verified or the unit under test can be adjusted.
The LR-Cal LPP 10 is a pneumatic pressure test pump for low-pressure ranges up to 8 bar with change-over switch to vacuum down to -850 mbar. Despite its compact dimensions, the pressure test pump is easy to operate and allows for exact generation of the required test pressures. The maximum pressure or vacuum achievable depends on the attached test volume. The smooth-running pressure generation and the integrated fine adjustment valve allow a safe and precise setting of very small positive resp. negative pressure values in the range of mbar.
The unit under test and the reference instrument can be easily connected with the supplied accessories.
Included in scope of standard delivery:
- Pressure test pump LR-Cal LPP 10
- T-piece, one side with 1/8" BSP male thread for direct mounting to the pressure test pump, other sides with quick hose connectors (Push&Pull) for pneumatic hose 4 x 2.5 mm. Easy mounting thanks to supplied o-ring. Max. torque 15 Nm.
- 2 pcs. pneumatic hose 4 x 2.5 mm, each length 0.5 m
- 2 pcs. quick connectors (Push&Pull) with 1/8" BSP male thread, for hose 4 x 2.5 mm
- 1 Adapter 1/8" BSP female x 1/2" BSP female, for connecting reference instrument (with 1/2" BSP male thread)
Thanks to integrated o-ring tightening without tools, just by hand - 1 Adapter 1/8" BSP female x 1/4" BSP female, for connecting unit under test (with 1/4" BSP male thread)
Thanks to integrated o-ring tightening without tools, just by hand - Operating manual
Options: see Accessories.
Specification
LR-Cal LPP 10 Specification
| Pressure generation: | 0 to 10 bar = 0 to 145 psi, switchable to |
| Vacuum generation: | 0 to -0.85 bar = 0 to -25 inHg |
| Pressure ports (standard version): |
For reference measuring instrument: 1/2" BSM female, with o-ring, via hose and t-piece For unit under test: 1/4" female, with o-ring, via hose and t-piece |
| Medium: | Ambient air |
| Priming pressure: | Ram |
| High pressure: | Volume adjustment valve |
| Fine pressure adjustment: | Volume adjustment valve (very sensitive) |
| Volume per stroke: | approx. 0.038 cm³ |
| Dimensions: | 172 x 100 x 58 mm (without connection pieces and hoses) |
| Weight: | approx. 697 g (without connection pieces and hoses) |
| Order-Code: | LPP-10 |
OEM version without any accessories: Order-Code LPP-10-PUMPE
Accessories
LR-Cal LPP 10 optional Accessories
| Order-Code | Description | Image |
| LPP-10-KOFFER | ACCESSORY: Transport and storage case with foams, with space for the pressure test pump plus up to 2 reference measuring instruments, such as LR-Cal LDM 80 or LR-Cal LHM or LR-Cal Serie 3000) |
|
| LPP-10-T-STUECK | SPARE PART: T-piece with 1/8" BSP male thread for direct mounting to the pressure test pump, with 2 hose connectors (Push&Pull) for pneumatic hose 4 x 2.5 mm (Note: 1 pc. included in standard delivery of LR-Cal LPP 10) |
 |
| LPP-10-PN-STECK | SPARE PART: Hose connector (Push&Pull) for hose 4 x 2.5 mm, with 1/8" BSP male port (Note: 2 pcs. included in standard delivery of LR-Cal LPP 10) |
 |
| LPP-10-ADAPT-G12 | SPARE PART: Adapter 1/8" BSP female x 1/2" BSP female (for reference measuring instrument) incl. O-ring (Note: 1 pc. included in standard delivery of LR-Cal LPP 10) |
 |
| LPP-10-ADAPT-G14 | SPARE PART: Adapter 1/8" BSP female x 1/4" BSP female (for test item) incl. O-ring (Note: 1 pc. included in standard delivery of LR-Cal LPP 10) |
|
| LPP-10-SCHLAUCH-0050 | SPARE PART: Set of 2 pcs. of pneumatic hose 4 x 2.5 mm, length 0.5 m (Note: 1 set included in standard delivery of LR-Cal LPP 10) |
 |
| SET-O-RING-14X3.5 | SPARE PART: Set of 10 pcs. O-ring 14 x 3.5 for reference instrument adapter LPP-10-ADAPT-G12 to be inserted into the 1/2" BSP female thread |
 |
| SET-O-RING-8X2.5 | SPARE SPART: Set of 10 pcs. O-ring 8 x 2.5 for test item adapter LPP-10-ADAPT-G14 to be inserted into the 1/4" BSP female thread |
 |
| SCHLAUCH-02ID-04AD | ACCESSORY: Pneumatic hose 4 x 2.5 mm, per meter |
|
| LPP-ADAPTER-BSP | ACCESSORY: Set of BSP adapters and set of spare o-rings, for test item port: 1/4" BSP male x 1/8" BSP female + 3/8" BSP female + 1/2" BSP female + 1/2" BSP male |
 |
| LPP-ADAPTER-NPT | ACCESSORY: Set of NPT adapters, for test item port: 1/4" BSP male x 1/8" NPT female + 1/4" NPT female + 3/8" NPT female + 1/2" NPT female |
 |
| LPP-ADAPTER-M | ACCESSORY: Set of metric adapters and set of spare o-rings, for test item port: 1/4" BSP male x M12x1.5 female + M20x1.5 female + MINIMESS 1620 |
 |
